Product Summary

The 0154003.DRT is a high-performance Surface Mount Fuse.

Parametrics

0154003.DRT Parametrics:

Packaging   Tape & Reel (TR)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Slow
Package / Case 2-SMD, Square End Block with Holder
Mounting Type Holder/Surface Mount
Breaking Capacity @ Rated Voltage 50A
Melting I2t 20.16
Approvals PSE, UL
Operating Temperature -55°C ~ 125°C
Color White

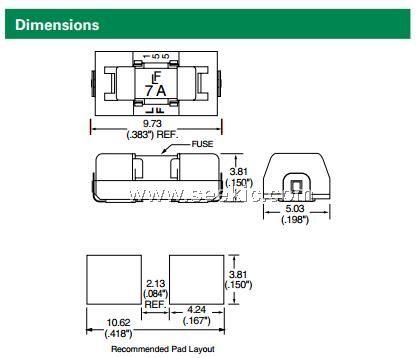

Size / Dimension 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm)
DC Cold Resistance 0.034 Ohm
Dynamic Catalog OMNI-BLOK? 154T Series
Associated Product
F3146DKR-ND - FUSE 3A 125V SLO SMD SILVER T/R
F3146CT-ND - FUSE 3A 125V SLO SMD SILVER T/R
F3146TR-ND - FUSE 3A 125V SLO SMD SILVER T/R
Other Names 0154003.T
0154003DRT
0154003T
154003.TDR
154003T
154003TDR
F1307TR
R154003T

Features

0154003.DRT Features:

?Easy fuse replacement
?Miniature size
?RoHS compliant andHalogen Free
?Very Fast-Acting andTime-Lag options available
? Holder sized to fit a rangeof Nano2?  type fuses
? Low fuse temperature de-rating
? Wide range of current rating available
-  Fast-Acting: 62mA - 10A
-  Time-Lag: 375mA - 5A
? Wide operating temperature range
? Heat-resistant fuseholder,UL94 V-0
? 260°C reflow capable fuseholder

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
0154003.DRT
0154003.DRT

Littelfuse

Fuses Fuseblock w/ fuse 3A OMNI BLOK 154T

Data Sheet

0-1: $1.25
1-10: $1.19
10-100: $1.12
100-250: $1.07
0154003.DRTL
0154003.DRTL

Littelfuse

Fuses ACS SMF OMNI-BLOK SB RoHS 260C 3A

Data Sheet

0-800: $1.06
800-1000: $0.79
1000-1500: $0.79
1500-2000: $0.75
