Product Summary

The FQPF7N80C is a high-performance   N-Channel enhancement mode power MOSFET. This N-Channel enhancement mode

power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology

Parametrics

FQPF7N80C Parametrics:

Packaging Tube
FET Type MOSFET N-Channel, Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 800V
Current - Continuous Drain (Id) @ 25°C 6.6A (Tc)
Rds On (Max) @ Id, Vgs 1.9 Ohm @ 3.3A, 10V
Vgs(th) (Max) @ Id 5V @ 250μA
Gate Charge (Qg) @ Vgs 35nC @ 10V
Input Capacitance (Ciss) @ Vds 1680pF @ 25V
Power - Max 56W
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Supplier Device Package TO-220F

Features

FQPF7N80C Features:


  • 6.6 A, 800 V, RDS(on) = 1.9 Ω (Max.) @ VGS = 10 V,ID = 3.3 A
  • Low Gate Charge (Typ. 27 nC)
  • Low Crss (Typ. 10 pF)
  • 100% Avalanche Tested

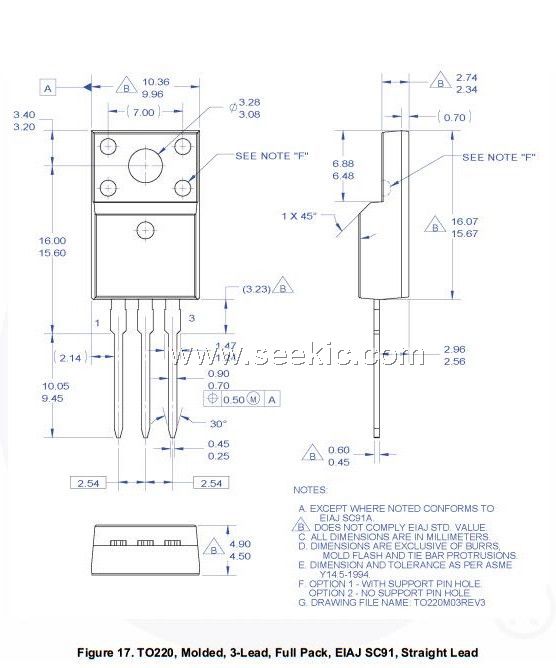

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

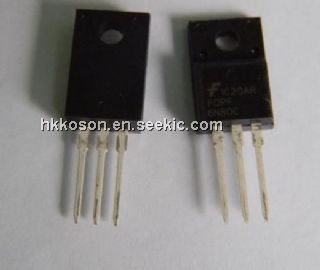

FQPF7N80C
FQPF7N80C
Fairchild Semiconductor
MOSFET 800V N-Ch Q-FET advance C-Series
Data Sheet
0-1: $0.92
1-25: $0.82
25-100: $0.74
100-250: $0.65
