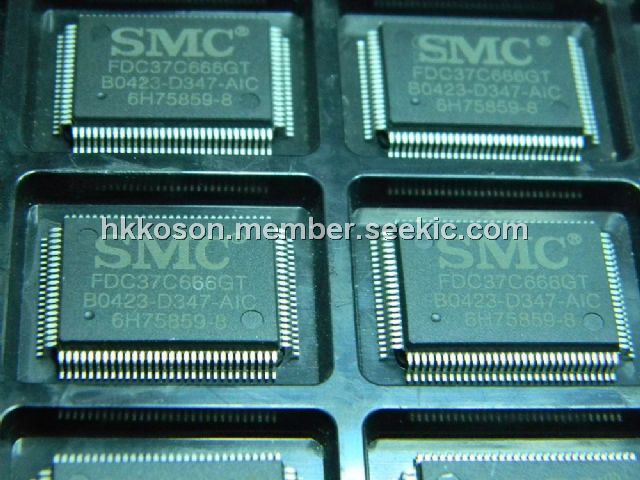

Product Summary

The FDC37C666GT is a high-performance multi-mode parallel port super I/O floppy disk controller. The FDC37C666GT utilizes SMSCs proven SuperCell technology for increased product reliability and functionality. The FDC37C666GT is optimized for motherboard applications while the FDC37C666GT is oriented towards controller card applications. Both devices support 1 Mb/s data rates for vertical recording operation.

Parametrics

FDC37C666GT absolute maximum ratings: (1)Operating Temperature Range: 0℃ to +70℃; (2)Storage Temperature Range: -55o to +150℃; (3)Lead Temperature Range (soldering, 10 seconds): +325℃; (4)Positive Voltage on any pin, with respect to Ground: Vcc+0.3V; (5)Negative Voltage on any pin, with respect to Ground: -0.3V; (6)Maximum Vcc: +7V.

Features

FDC37C666GT features: (1)5 Volt Operation; (2)Floppy Disk Available on Parallel Port Pins; (3)2.88MB Super I/O Floppy Disk Controller; (4)Enhanced Digital Data Separator; (5)Multi-Mode Parallel Port with ChiProtecto Circuitry; (6)Serial Ports; (7)ISA Host Interface; (8)IDE Interface.

Diagrams

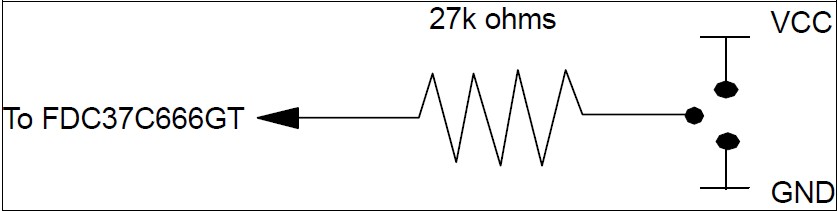

FDC37C666GT pin connection
