Product Summary

The ICE3B3065P is a high-performance Off-Line SMPS Current Mode Controller.

Parametrics

ICE3B3065P Parametrics:

Packaging Tube
Output Isolation Isolated
Frequency Range 61kHz ~ 73kHz
Voltage - Input 8.5 V ~ 22 V
Voltage - Breakdown 650V
Voltage - Output -
Power (Watts) 128W
Operating Temperature -40°C ~ 150°C
Package / Case TO-220-6 Formed Leads
Supplier Device Package PG-TO220-6
Other Names ICE3B3065PBKSA1
ICE3B3065PX
ICE3B3065PXK
SP000016811

Features

ICE3B3065P Features:

? 650V avalanche rugged CoolMOS? with built in switchable Startup Cell
? Active Burst Mode for lowest Standby Power @ light load controlled by Feedback signal
? Fast load jump response in Active Burst Mode
? 67/100 kHz fixed switching frequency
? Auto Restart Mode for Overtemperature Detection
? Auto Restart Mode for Overvoltage Detection
? Auto Restart Mode for Overload and Open Loop
? Auto Restart Mode for VCC Undervoltage
? Blanking Window for short duration high current
? User defined Soft Start
? Minimum of external components required
? Max Duty Cycle 72%
? Overall tolerance of Current Limiting < ±5%
? Internal PWM Leading Edg

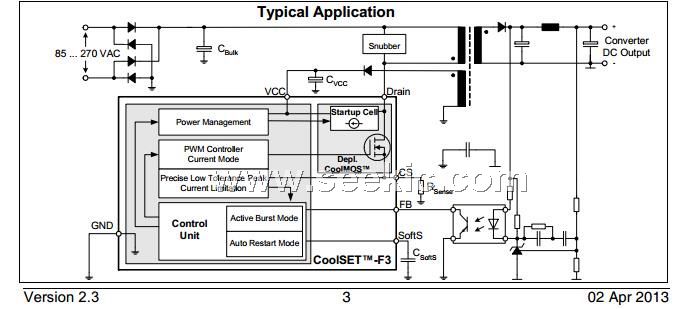

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ICE3B3065P
ICE3B3065P
Infineon Technologies
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 800V
Data Sheet
0-1: $1.86
1-10: $1.66
10-100: $1.36
100-250: $1.23
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ICE3A0365
ICE3A0365
Infineon Technologies
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V
Data Sheet
0-960: $0.59
960-1000: $0.47
1000-2000: $0.40
2000-8000: $0.38
ICE3A0565
ICE3A0565
Infineon Technologies
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V
Data Sheet
0-1390: $0.44
1390-2000: $0.41
2000-8000: $0.39
8000-12000: $0.38
ICE3A0565Z
ICE3A0565Z
Infineon Technologies
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V
Data Sheet
0-1390: $0.44
1390-2000: $0.41
2000-8000: $0.39
8000-12000: $0.38
ICE3A1065ELJ
ICE3A1065ELJ
Infineon Technologies
Current Mode PWM Controllers SMPS IC'S
Data Sheet
0-1390: $0.44
1390-2000: $0.41
2000-8000: $0.39
8000-12000: $0.38
ICE3A1065L
ICE3A1065L
Infineon Technologies
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V
Data Sheet
Negotiable
ICE3A1565
ICE3A1565
Infineon Technologies
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V
Data Sheet
0-1: $1.30
1-10: $1.11
10-100: $0.83
100-500: $0.65
