Product Summary
The ICE3BS03LJG is a high-performance Off-Line SMPS Current Mode Controller with integrated 500V Startup Cell ( Latched
and frequency jitter Mode )
Parametrics
ICE3BS03LJG Parametrics:
Packaging
Tape & Reel (TR)
Output Isolation
Isolated
Frequency Range
56.5kHz ~ 73.7kHz
Voltage - Input
10.5 V ~ 27 V
Voltage - Breakdown
500V
Voltage - Output
-
Power (Watts)
-
Operating Temperature
-40°C ~ 150°C

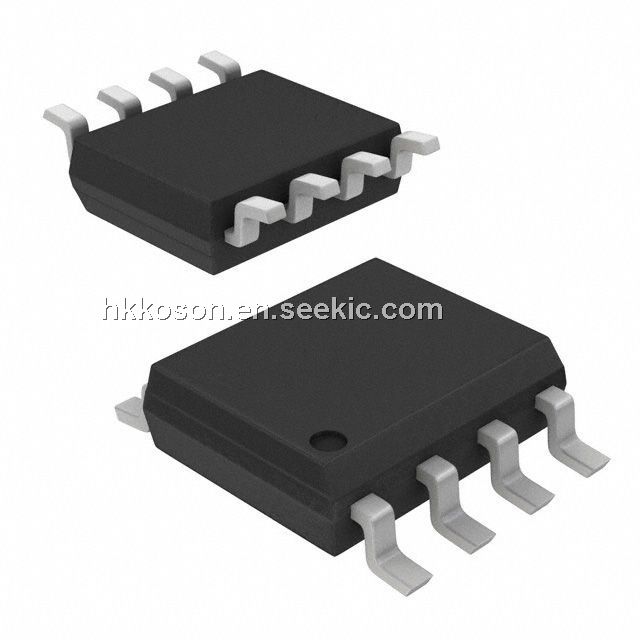

Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
PG-DSO-8
Other Names
ICE3BS03LJGXUMA1
SP000366821
SP000783726
Features
ICE3BS03LJG Features:
? 500V Startup Cell switched off after Start Up
? Active Burst Mode for lowest Standby Power
? Fast load jump response in Active Burst Mode
? 65kHz internally fixed switching frequency
? Built-in Latched Off Protection Mode for Overtemperature, Overvoltage & Short Winding
? Auto Restart Protection Mode for Overload, Open Loop & VCC Undervoltage
? Built-in Soft Start
? Built-in blanking window with extendable blanking time for short duration high current
? External latch off enable function
? Max Duty Cycle 75%
? Overall tolerance of Current Limiting < ±5%
? Internal PWM Leading Edge Blanking
? BiCMOS technology provide wide VCC range
? Frequency jitter and soft gate driving for low EMI

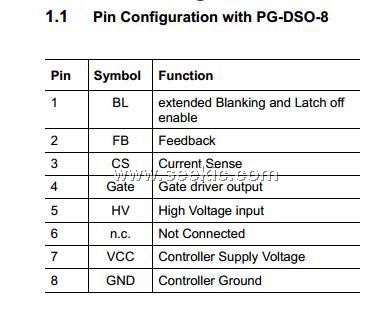

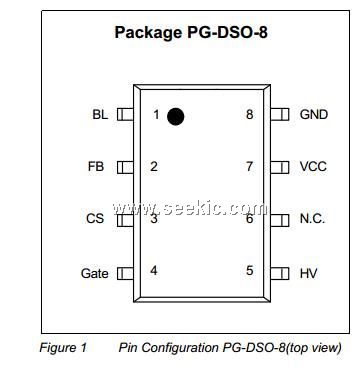

Diagrams
