Product Summary

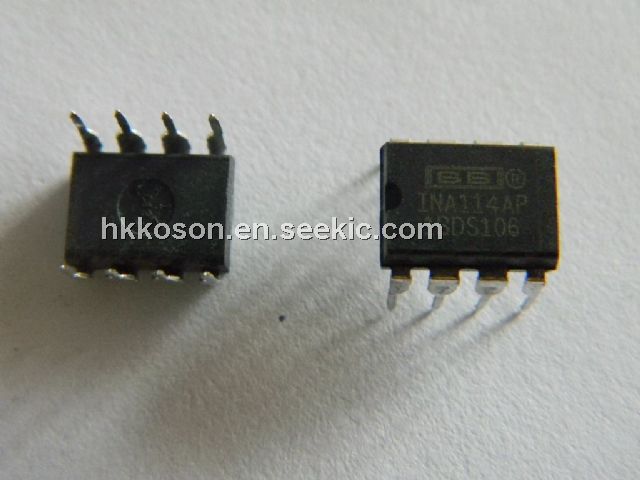

The INA114AP is a low cost, general purpose instrumentation amplifier offering excellent accuracy.
Parametrics
INA114AP Parametrics:(1)Amplifier Type:Instrumentation (2)Slew Rate:0.6 V/μs (3)-3db Bandwidth:-1MHz
(4)Current - Input Bias:500pA (5)Voltage - Input Offset:25μV (6)Current - Supply:2.2mA
(7)Current - Output / Channel:20mA (8)Voltage - Supply, Single/Dual (±):4.5 V ~ 36 V, ±2.25 V ~ 18 V
(9)Operating Temperature:-40°C ~ 85°C (10)Package / Case:8-DIP (0.300", 7.62mm)
Features
INA114AP Features:(1)LOW OFFSET VOLTAGE: 50μV max (2)LOW DRIFT: 0.25μV/°C max
(3)LOW INPUT BIAS CURRENT: 2nA max (4)HIGH COMMON-MODE REJECTION:115dB min
(5)INPUT OVER-VOLTAGE PROTECTION:±40V (6)LOW QUIESCENT CURRENT: 3mA max
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 INA114AP |
Texas Instruments |
Instrumentation Amplifiers Precision Instrumentation Amp |
Data Sheet |
|
|
||||||||||||
|
INA114APG4 |
Texas Instruments |
Instrumentation Amplifiers Precision Instrumentation Amp |
Data Sheet |
|
|
||||||||||||
