Product Summary
The MAX202IDWR is a dual RS-232 line driver/receiver with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The MAX202IDWR operates at data signaling rates up to 120 kbit/s and a maximum of 30-V/ms driver output slew rate. The applications of the MAX202IDWR include Battery-Powered Systems, PDAs, Notebooks, Laptops, Palmtop PCs, Hand-Held Equipment.
Parametrics
MAX202IDWR absolute maximum ratings: (1)VCC, Supply voltage range: –0.3 to 6 V; (2)V+, Positive charge pump voltage range: VCC – 0.3 to 14 V; (3)V–, Negative charge pump voltage range: –14 to 0.3 V; (4)VI, Input voltage range,Drivers: –0.3 to V+ + 0.3 V; Receivers: ±30 v max; (5)VO, Output voltage range: Drivers, V – –0.3 to V+ + 0.3v; Receivers: –0.3 to VCC + 0.3v; (6)DOUT, Short-circuit duration: Continuous; (7)θJA, Package thermal impedance: D package: 73℃/W; DW package 57℃/W; N package: 67℃/W; PW package: 108℃/W; (8)TJ, Operating virtual junction temperature: 150 ℃; (9)Tstg, Storage temperature range: –65 to 150 ℃.
Features
MAX202IDWR features: (1)ESD Protection for RS-232 Bus Pins: ±15-kV – Human-Body Model; (2)Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards; (3)Operates at 5-V VCC Supply; (4)Operates Up to 120 kbit/s; (5)External Capacitors: 4 × 0.1 uF; (6)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

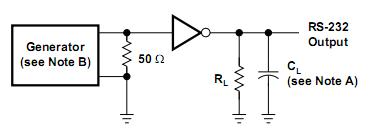

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

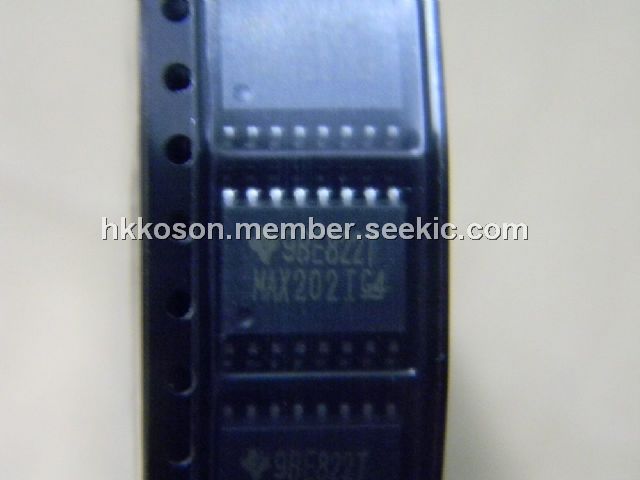

 MAX202IDWR |
Texas Instruments |
RS-232 Interface IC 5V Dual Line Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX202IDWRE4 |
Texas Instruments |
RS-232 Interface IC 5V Dual Line Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX202IDWRG4 |
Texas Instruments |
RS-232 Interface IC 5V Dual RS-232 Line Driver/Receiver |
Data Sheet |
|
|
||||||||||||
