Product Summary
The MAX4638ESE is a high-performance Low-Voltage Analog Multiplexer.
Parametrics
MAX4638ESE Parametrics:
Packaging
Tube
Function
Multiplexer
Circuit
1 x 8:1
On-State Resistance
3.5 Ohm
Voltage Supply Source
Single, Dual Supply
Voltage - Supply, Single/Dual (±)
1.8 V ~ 5.5 V, ±2.5 V
Current - Supply
1μA
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount

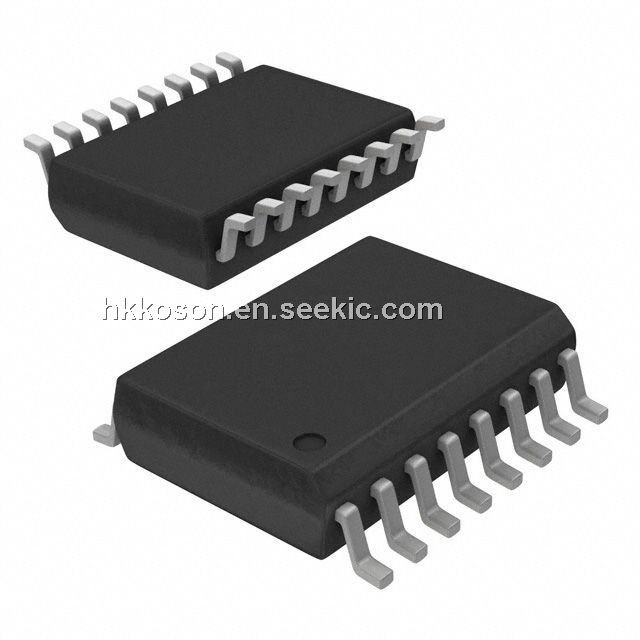

Package / Case
16-SOIC (0.154", 3.90mm Width)
Supplier Device Package
16-SOIC
Dynamic Catalog
Multiplexer/Demultiplexer
Features
MAX4638ESE Features:
? Guaranteed RON
3.5Ω (+5V or ±2.5V Supplies)
6Ω (+3V Supply)
? Guaranteed 0.4Ω RON Match Between Channels
? Guaranteed 1Ω RON Flatness Over Signal Range
? Guaranteed Low Leakage Currents 0.25nA at +25°C
? Switching Times: tON = 18ns, tOFF = 7ns
? +1.8V to +5.5V Single-Supply Operation
±2.5V Dual-Supply Operation
? Rail-to-Rail Signal Handling
? TTL/CMOS-Logic Compatible
? Crosstalk: -80dB (1MHz)
? Off-Isolation: -60dB (10MHz)

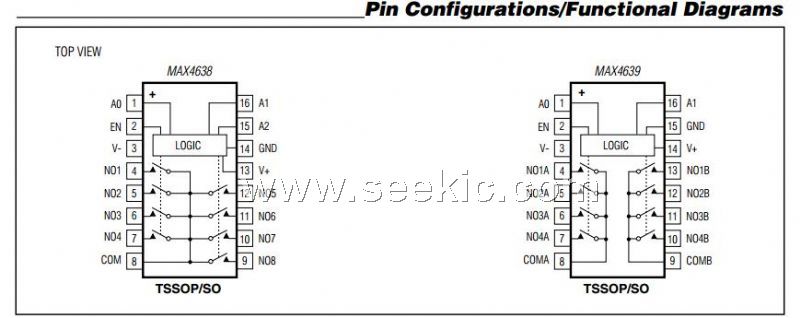

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4638ESE-T |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX4638ESE+T |
Maxim Integrated Products |
Multiplexer Switch ICs 4:1 Low-Voltage Analog MUX |
Data Sheet |
|
|
||||||||||||
|
MAX4638ESE+ |
Maxim Integrated Products |
Multiplexer Switch ICs 4:1 Low-Voltage Analog MUX |
Data Sheet |
|
|
||||||||||||
|
MAX4638ESE |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
