Product Summary

The NCP1653DR2G is a high-performance Compact, Fixed-Frequency,Continuous Conduction Mode PFC Controller.

Parametrics

NCP1653DR2G Parametrics:

Packaging Tape & Reel (TR)
Mode Continuous Conduction (CCM)
Frequency - Switching 90kHz ~ 110kHz
Current - Startup -
Voltage - Supply 8.75 V ~ 18 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC N
Dynamic Catalog PFC (Power Factor Correction)
Other Names NCP1653DR2GOS
NCP1653DR2GOS-ND
NCP1653DR2GOSTR

Features

NCP1653DR2G Features:

? IEC1000?3?2 Compliant
? Continuous Conduction Mode
? Average Current?Mode or Peak Current?Mode Operation
? Constant Output Voltage or Follower Boost Operation
? Very Few External Components
? Fixed Switching Frequency: 67 kHz = NCP1653A,Fixed Switching Frequency: 100 kHz = NCP1653
? Soft?Start Capability
? VCC Undervoltage Lockout with Hysteresis (8.7 / 13.25 V)
? Overvoltage Protection (107% of Nominal Output Level)
? Undervoltage Protection or Shutdown (8% of Nominal Output Level)
? Programmable Overcurrent Protection
? Programmable Overpower Limitation
? Thermal Shutdown with Hysteresis (120 / 150℃)
? This is a Pb?Free Device

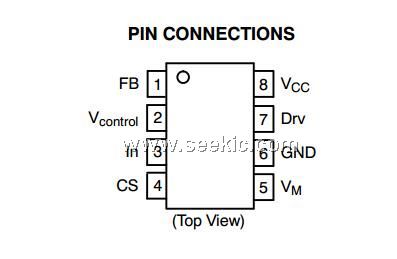

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

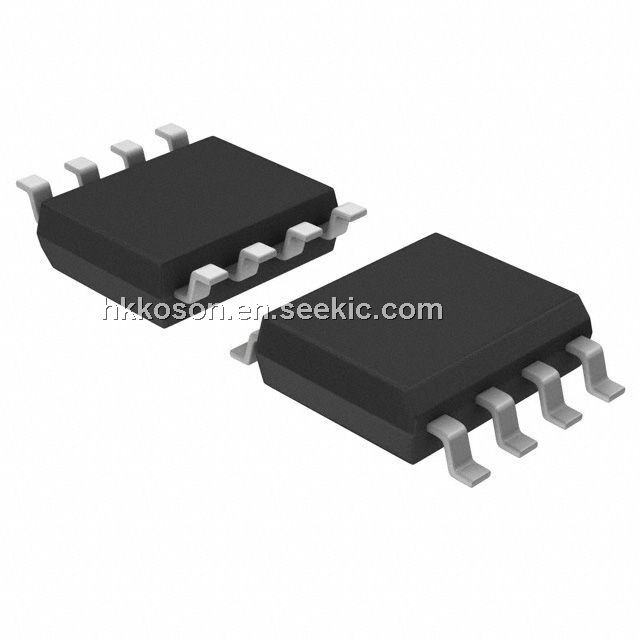

NCP1653DR2G
NCP1653DR2G
ON Semiconductor
Power Factor Correction ICs Fixed Frequency Current Mode PFC
Data Sheet
0-1730: $0.48
1730-2000: $0.45
2000-2500: $0.45
2500-5000: $0.43
