Product Summary
The TL074ACDT is a Low-noise JFET quad operational amplifier.
Parametrics
TL074ACDT Parametrics:
Packaging
Tape & Reel (TR)
Amplifier Type
J-FET
Number of Circuits
4
Output Type
-
Slew Rate
13 V/μs
Gain Bandwidth Product
3MHz
-3db Bandwidth
-
Current - Input Bias
20pA
Voltage - Input Offset
3mV
Current - Supply
1.4mA
Current - Output / Channel
40mA
Voltage - Supply, Single/Dual (±)
6 V ~ 36 V, ±3 V ~ 18 V
Operating Temperature
0°C ~ 70°C
Mounting Type
Surface Mount
Package / Case

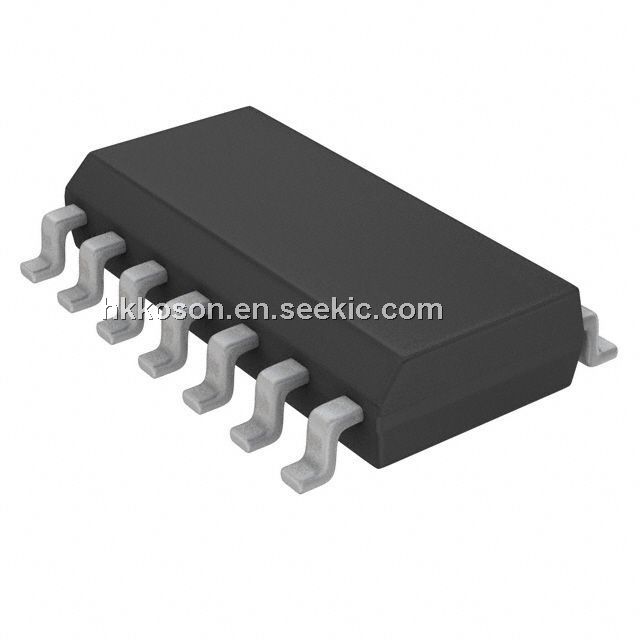

14-SOIC (0.154", 3.90mm Width)
Supplier Device Package
14-SO
Dynamic Catalog
J-FET
Other Names
497-2203-2
Features
TL074ACDT Features:
? Wide common-mode (up to VCC+) and differential voltage range
? Low input bias and offset current
? Low noise en= 15 nV/ √Hz (typ)
? Output short-circuit protection
? High input impedance JFET input stage
? Low harmonic distortion: 0.01% (typical)
? Internal frequency compensation
? Latch up free operation
? High slew rate: 16 V/μs (typical)

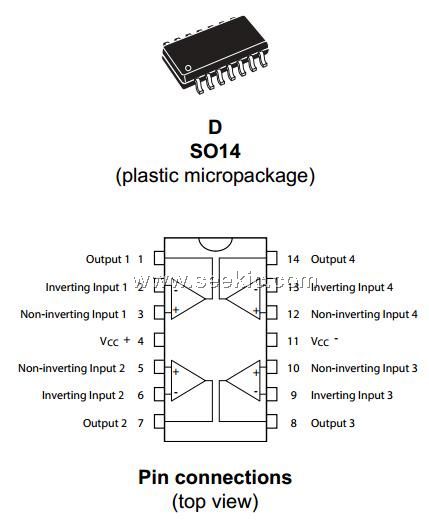

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL074ACDT |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Low Noise JFET |
Data Sheet |
|
|
||||||||||||
