Product Summary
The ADUM1400CRWZ is a high-performance Digital Isolator.
Parametrics
ADUM1400CRWZ Parametrics:
Packaging
Tube
Inputs - Side 1/Side 2
4/0
Number of Channels
4
Voltage - Supply
2.7 V ~ 5.5 V
Voltage - Isolation
2500Vrms
Data Rate
90Mbps
Propagation Delay
50ns
Output Type
Logic

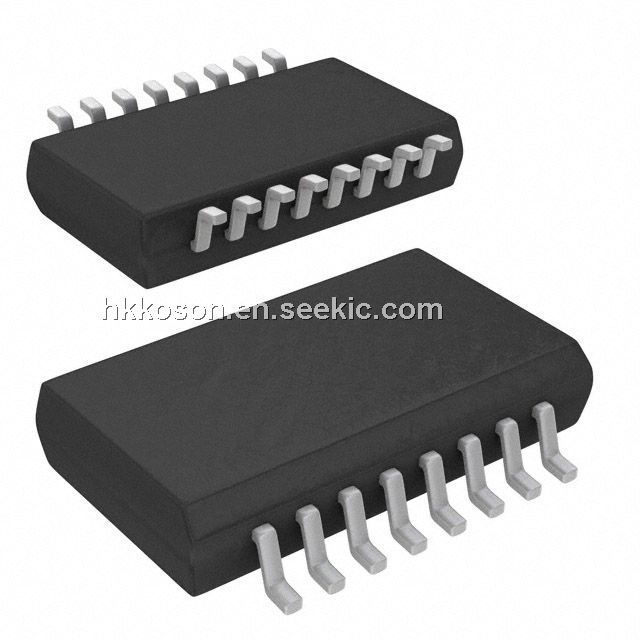

Package / Case
16-SOIC (0.295", 7.50mm Width)
Supplier Device Package
16-SOIC W
Operating Temperature
-40°C ~ 105°C
Dynamic Catalog
ADuM1400,01,02 Series
Features
ADUM1400CRWZ Features:
- Qualified for automotive applications
- Bidirectional communication
- 3 V/5 V level translation
- High data rate: dc to 90 Mbps (NRZ)
- Precise timing characteristics
- Low power operation
- High common-mode transient immunity: >25 kV/μs
- Output enable function
- 16-lead SOIC wide body package
- RoHS-compliant models available
- Safety and regulatory approvals

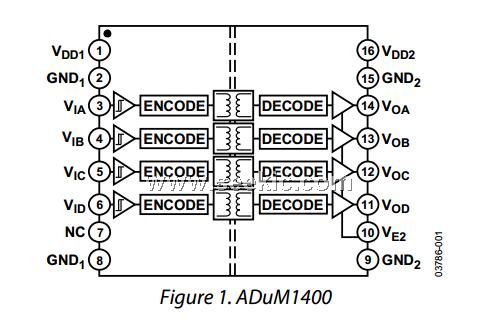

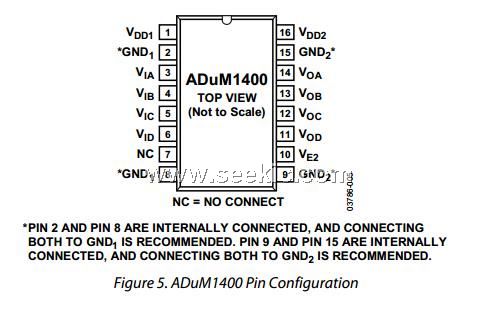

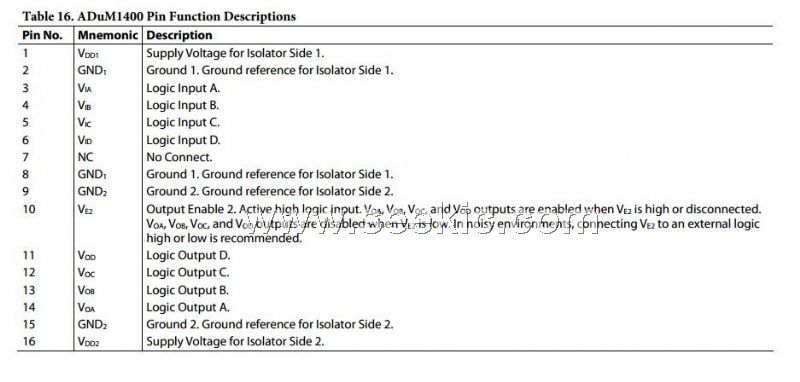

Diagrams
