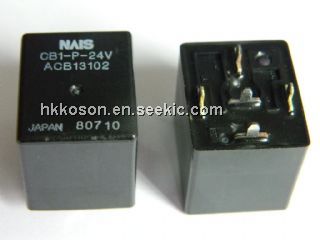

Product Summary

The CB1-P-24V is a high-performance,compact , high capacity relay,which is use for Automobiles,Construction equipment,

Agricultural equipment, Conveyor, etc.

Parametrics

CB1-P-24V Parametrics:


  • Series: CB
  • Packaging: Bulk
  • Relay Type: Automotive
  • Coil Type: Non Latching
  • Coil Current: 75mA
  • Coil Voltage: 24VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Rating (Current): 20A
  • Switching Voltage: 28VDC - Nom
  • Turn On Voltage (Max): 14 VDC
  • Turn Off Voltage (Min): 2.4 VDC
  • Operate Time: 15ms
  • Release Time: 15ms
  • Features: Sealed - Fully
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Contact Material: Silver Alloy, Cadmium Free
  • Coil Power: 1.8 W
  • Coil Resistance: 320 Ohms
  • Operating Temperature: -40°C ~ 85°C
  • Dynamic Catalog: CB Series


Features

CB1-P-24V Features:


  • This relay has an Mini-ISO


(International Organization for Standardization) terminal arrangement.
  • Relay is compact and high capacity (40 A).

Compact form factor realized with space saving 22 × 26 mm .866 × 1.024 inch small base area thanks to integrated

bobbin and base construction. Features high switching capacity of 40 A

  • Features high thermal resistance of 125°C 257°F (heat resistant type).
Heat resistant type is available that can withstand use near engines. (40 A switching capacity)
  • Built-in resistor type is also available.

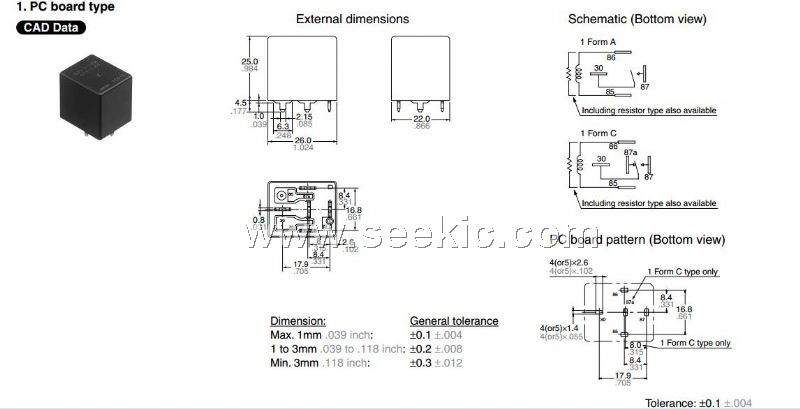

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CB1-P-24V
CB1-P-24V
Panasonic Electric Works
General Purpose / Industrial Relays 20A 24VDC 1 FORM C SEALED PCB
Data Sheet
0-1: $2.90
1-25: $2.64
25-50: $2.42
50-100: $2.35
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CB1-12V
CB1-12V
Panasonic Electric Works
General Purpose / Industrial Relays 40A 12VDC 1 FORM C SEALED QC
Data Sheet
0-1: $2.24
1-25: $2.00
25-50: $1.90
50-100: $1.81
CB1-24V
CB1-24V
Panasonic Electric Works
General Purpose / Industrial Relays 20A 24VDC 1 FORM C SEALED QC
Data Sheet
0-1: $2.80
1-25: $2.57
25-50: $2.41
50-100: $2.29
CB1-D-12V
CB1-D-12V
Panasonic Electric Works
General Purpose / Industrial Relays 40AMP 12VDC 1 FORM C
Data Sheet
0-1: $2.82
1-25: $2.59
25-50: $2.30
50-100: $2.17
CB1-D-24V
CB1-D-24V
Panasonic Electric Works
General Purpose / Industrial Relays 20AMP 24VDC 1 FORM C
Data Sheet
0-1: $3.77
1-25: $3.46
25-50: $3.08
50-100: $2.62
CB1-D-M-12V
CB1-D-M-12V
Panasonic Electric Works
General Purpose / Industrial Relays 40A 12VDC 1 FORM C W/DIO SEAL BRKT
Data Sheet
0-1: $3.68
1-25: $3.37
25-50: $3.00
50-100: $2.54
CB1-D-M-24V
CB1-D-M-24V
Panasonic Electric Works
General Purpose / Industrial Relays 20A 24VDC 1 FORM C W/DIO SEAL BRKT
Data Sheet
0-1: $3.40
1-25: $3.19
25-50: $3.07
50-100: $2.58
