Product Summary

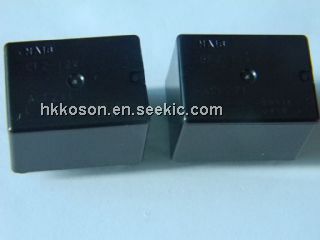

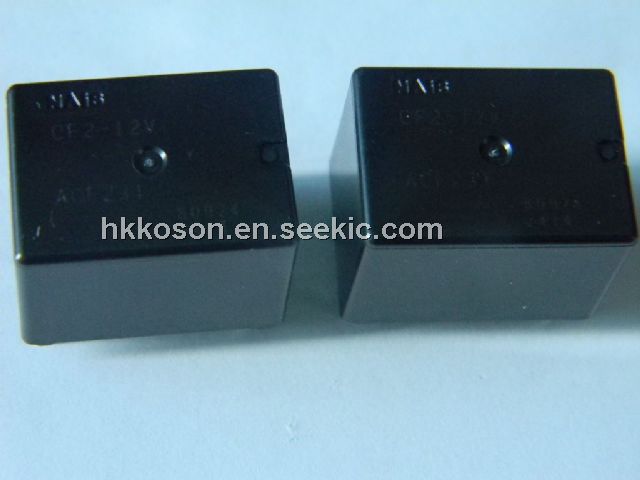

The CF2-12V is a kind of Power Relays,which is used for automobile.

Parametrics

CF2-12V Parametrics:(1)Relay Type:Automotive    (2)Coil Type:Non Latching  (3)Coil Current: 53mA

(4)Coil Voltage:12VDC         (5)Contact Form:SPDT (1 Form C) Dual

(6)Contact Rating (Current):10A              (7)Switching Voltage:14VDC - Nom

(8)Turn On Voltage (Max):7.2 VDC           (9)Turn Off Voltage (Min):1 VDC

(10)Operate Time:10ms                           (11)Release Time:10ms

(12)Operating Temperature:-40°C ~ 85°C  (12)Coil Power:640 mW

Features

CF2-12V Features:(1)7 Amp Steady/30 Amp Inrush current capability
(2)Simple footprint enables ease of PC board layout

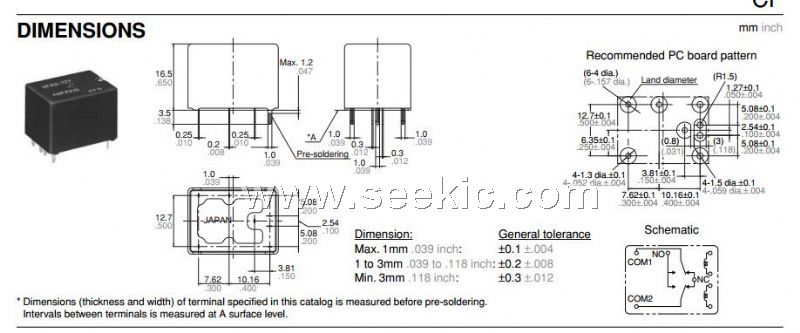

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CF2-12V
CF2-12V
Panasonic Electric Works
General Purpose / Industrial Relays 30A 12VDC 1 FORM C X 2
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CF2-12V
CF2-12V
Panasonic Electric Works
General Purpose / Industrial Relays 30A 12VDC 1 FORM C X 2
Data Sheet
Negotiable
CF2-17.5*9.5*28.5
CF2-17.5*9.5*28.5

FERRITE CYL EMI SUPPRESS 9.5MM
Data Sheet
0-1: $0.41
1-10: $0.35
10-25: $0.33
25-50: $0.30
50-100: $0.24
100-250: $0.20
250-500: $0.18
500-1000: $0.17
CF2-26*13*28.5
CF2-26*13*28.5
API Delevan
EMI/RFI Suppressors & Ferrites EMI/RFI Suppressor Cylindrical Ferrite
Data Sheet
0-1: $1.42
1-10: $1.36
10-25: $1.25
25-50: $1.19
CF2-4*2*10
CF2-4*2*10
API Delevan
EMI/RFI Suppressors & Ferrites FERRITE 86 @ 100MHZ
Data Sheet
0-1: $0.05
1-10: $0.05
10-25: $0.04
25-50: $0.03
