Product Summary

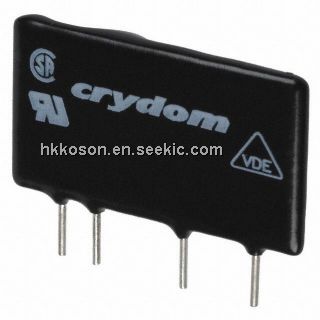

The CX240D5 is a high-performance Solid State Relay.

Parametrics

CX240D5 Parametrics:

Packaging Bulk
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
On-State Resistance -
Load Current 5A
Voltage - Input 3 ~ 15VDC
Voltage - Load 12 ~ 280 V
Mounting Type Through Hole
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Relay Type Relay
Dynamic Catalog CX Series
Associated Product
DRS4-ND - DIN-RAIL SOCKET FOUR CHAN RELAY
CC1998-ND - DIN-RAIL SOCKET SNGL CHAN RELAY
Other Names CC1063

Features

CX240D5 Features:

? SIP SSR
? Ratings of 5A @ 660 VAC
? SCR output for heavy industrial loads
? AC or DC control
? Zero-crossing (resistive loads) or random-fire (inductive loads) output
? CE Compliant to EN60950-1

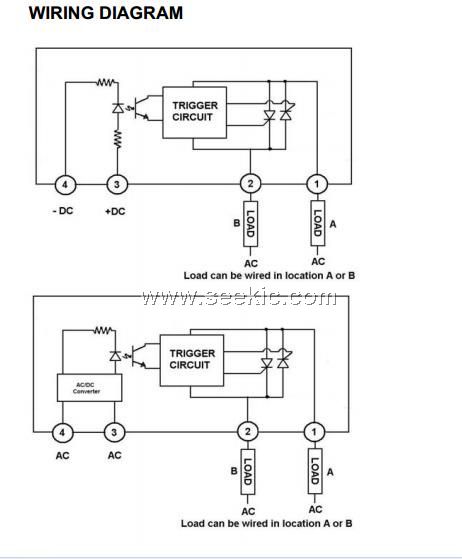

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CX240D5
CX240D5
Crydom
Solid State Relays PCB SIP SSR 280Vac 5A, 3-15Vdc,ZC
Data Sheet
0-1: $8.27
1-10: $7.88
10-25: $7.70
25-50: $7.52
CX240D5-B
CX240D5-B
Crydom
Solid State Relays PCB SIP SSR 280Vac /5A, 3-15Vdc,ZC,NC
Data Sheet
0-27: $9.64
27-50: $9.10
50-100: $8.85
100-250: $8.61
CX240D5R
CX240D5R
Crydom
Solid State Relays PCB SIP SSR 280Vac 5A, 3-15Vdc,RN
Data Sheet
0-1: $8.77
1-10: $8.35
10-25: $8.16
25-50: $7.97
