Product Summary
The AD8362ARUZ is a high-performance 50 Hz to 3.8 GHz 65 dB TruPwr?Detector.
Parametrics
AD8362ARUZ Parametrics:
Packaging
Tube
Frequency
50Hz ~ 3.8GHz
RF Type
Cellular, GSM, CDMA, TDMA, TETRA
Input Range
-52dBm ~ 8dBm
Accuracy
0.5dB
Voltage - Supply
4.5 V ~ 5.5 V
Current - Supply
20mA

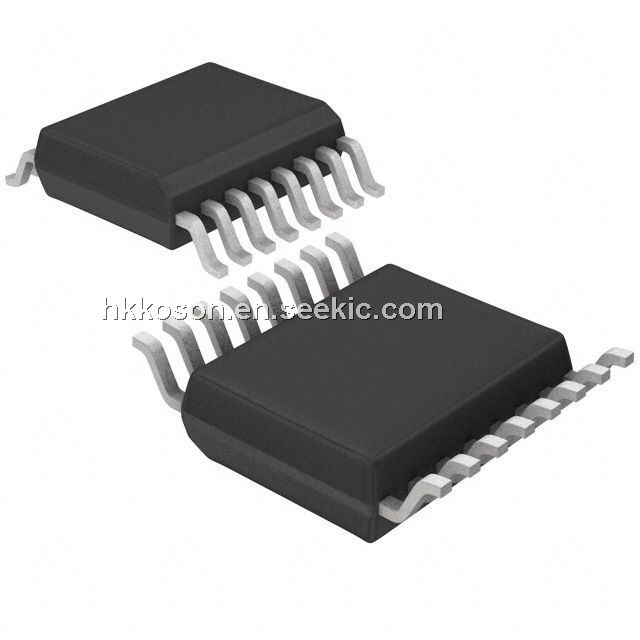

Package / Case
16-TSSOP (0.173", 4.40mm Width)
Dynamic Catalog
Detectors
Features
AD8362ARUZ Features:
- Complete fully calibrated measurement/control system
- Accurate rms-to-dc conversion from 50 Hz to 3.8 GHz
- Input dynamic range of >65 dB: ?52 dBm to +8 dBm in 50 Ω
- Waveform and modulation independent, such as GSM/CDMA/TDMA
- Linear-in-decibels output, scaled 50 mV/dB
- Law conformance error of 0.5 dB
- All functions temperature and supply stable
- Operates from 4.5 V to 5.5 V at 24 mA
- Power-down capability to 1.3 mW

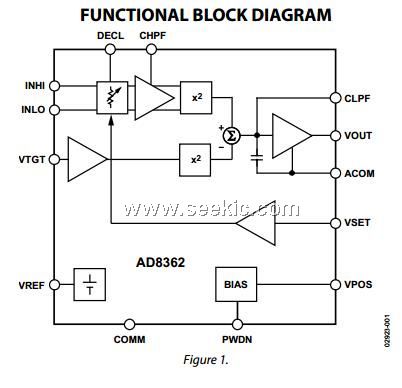

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8362ARUZ |
|
IC PWR DETECTOR 3.8GHZ 16-TSSOP |
Data Sheet |
|
|
||||||||||||||||
|
AD8362ARUZ-REEL7 |
|
IC PWR DETECTOR 3.8GHZ 16-TSSOP |
Data Sheet |
|
|
||||||||||||||||
 |
AD8362ARUZ-REEL71 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
