Product Summary

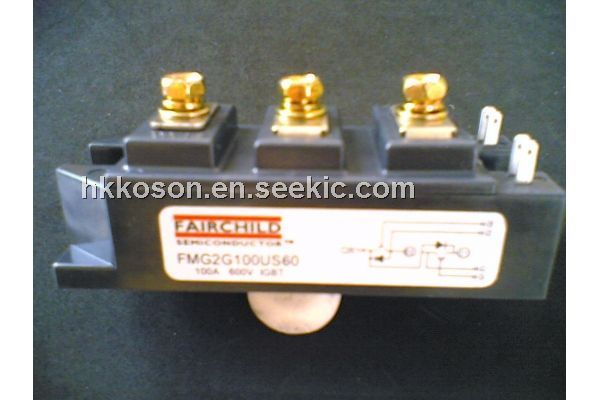

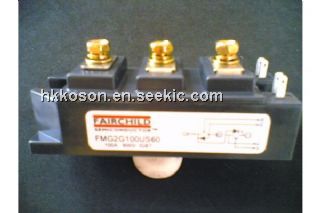

The FMG2G100US60 is a high-performance Molding Type Module.
Parametrics
FMG2G100US60 Parametrics:
Configuration | Half Bridge |
---|---|
Voltage - Collector Emitter Breakdown (Max) | 600V |
Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 100A |
Current - Collector (Ic) (Max) | 100A |
Current - Collector Cutoff (Max) | 250μA |
Input Capacitance (Cies) @ Vce | 10.84nF @ 30V |
Power - Max | 400W |
Input | Standard |
NTC Thermistor | No |
Mounting Type | Chassis Mount |
Package / Case | 7PM-GA |
Supplier Device Package | 7PM-GA |
Features
FMG2G100US60 Features:
? UL Certified No. E209204
? Short Circuit rated 10us @ TC = 100°C, VGE = 15V
? High Speed Switching
? Low Saturation Voltage : VCE(sat) = 2.2 V @ IC = 100A
? High Input Impedance
? Fast & Soft Anti-Parallel FWD
