Product Summary

The PS21767 is a high-performance Intellimod? Module.

Parametrics

PS21767 Parametrics:

Type IGBT
Configuration 3 Phase
Current 30A
Voltage 600V
Voltage - Isolation 2500VDC
Package / Case PCB Module
Dynamic Catalog Intellimod? PS21, PS22 Series
For Use With
835-1028-ND - KIT DEV INTERFACE FOR IPM DIP
Other Names 835-1038

Features

PS21767 Features:


  • Compact Packages
  • Single Power Supply
  • Integrated HVICs
  • Direct Connection to CPU
  • Reduced Rth

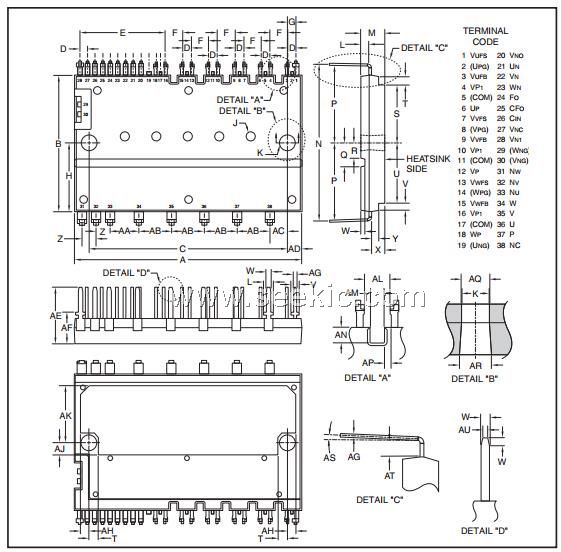

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

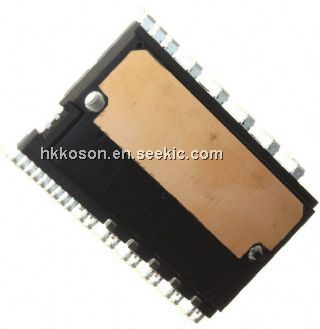

PS21767
PS21767

MOD IPM 600V 30A MINI DIP
Data Sheet
0-1: $31.60
1-10: $29.55
10-100: $25.62
100-250: $23.91
250-500: $22.72
500-1000: $21.87
1000-2500: $21.18
2500-5000: $20.50
PS21767-V
PS21767-V
Other

Data Sheet
Negotiable
