Product Summary

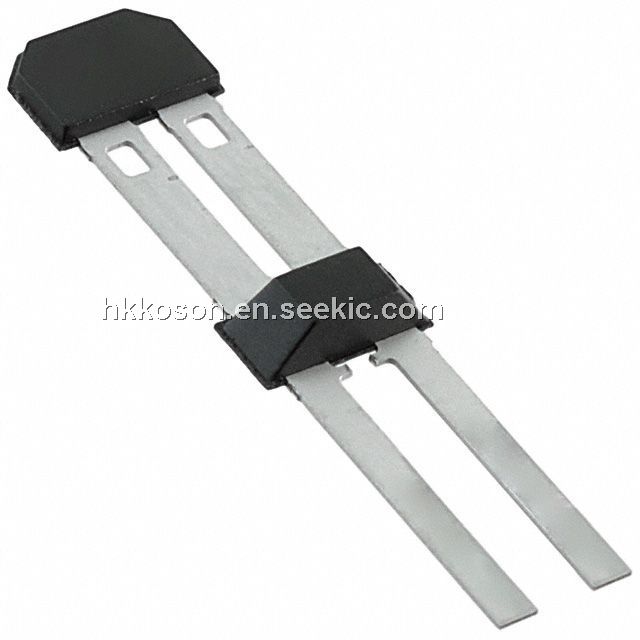

The TLE4941PLUSC is a high-performance Differential Hall IC for Wheel Speed Sensing.

Parametrics

TLE4941PLUSC Parametrics:

Packaging   Tape & Box (TB)
Sensing Range -
Type Special Purpose
Voltage - Supply 4.5 V ~ 20 V
Current - Supply 8.4mA
Current - Output (Max) -
Output Type Digital, PWM (Current)
Features High Sensitivity
Operating Temperature -40°C ~ 150°C
Package / Case 2-SIP, SSO-2-53
Supplier Device Package PG-SSO-2-53
Dynamic Catalog TLE4941PLUSC
Other Names SP000478508
TLE4941PLUSC-ND
TLE4941PLUSCAAMA1
TLE4941PLUSCCAMA1


Features

TLE4941PLUSC Features:

  1. ? Two-wire current interface: Minimizes wiring
  2. ? Dynamic self-calibration principle: Compensates offsets
  3. ? Single chip solution: Ensures outstanding reliability
  4. ? High sensitivity: Can be used for large airgap applications
  5. ?? South and north pole pre-induction possible: Works for both encoders and tonewheels
  6. ? High resistance to piezo effects: Suits sensor  overmolding wide operating temperature range
  7. ? C type with 1.8 nF overmolded capacitor: Enhances EMC & microbreak resistance, without any external components

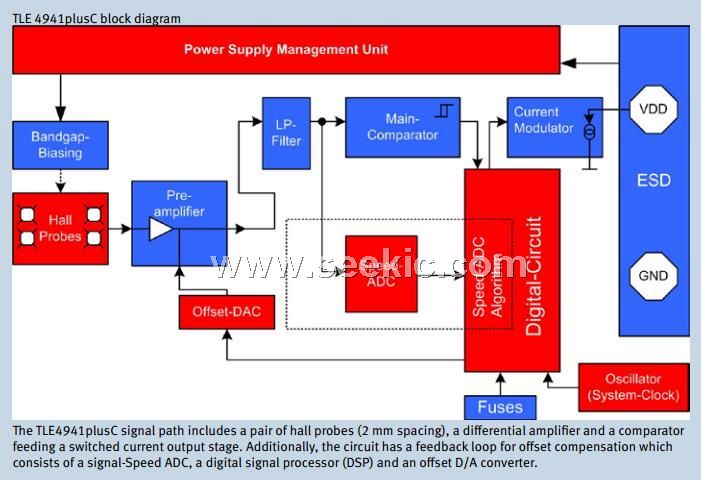

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLE4941PLUSC
TLE4941PLUSC
Infineon Technologies
Board Mount Hall Effect / Magnetic Sensors Differential Hall IC Wheel Speed Sensing
Data Sheet
0-905: $2.02
905-1000: $1.70
1000-1500: $1.70
1500-2000: $1.62
