Product Summary
The FDC6321C is a high-performance Dual N & P Channel , Digital FET.
Parametrics
FDC6321C Parametrics:
Packaging
Tape & Reel (TR)
FET Type
N and P-Channel
FET Feature
Logic Level Gate
Drain to Source Voltage (Vdss)
25V
Current - Continuous Drain (Id) @ 25°C
680mA, 460mA
Rds On (Max) @ Id, Vgs
450 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id
1.5V @ 250μA
Gate Charge (Qg) @ Vgs
2.3nC @ 5V
Input Capacitance (Ciss) @ Vds
50pF @ 10V
Power - Max
700mW
Mounting Type
Surface Mount
Package / Case
SOT-23-6 Thin, TSOT-23-6
Supplier Device Package
6-SSOT
Dynamic Catalog
N and P-Channel Logic Level Gate FETs
Other Names
FDC6321C-ND
Features
FDC6321C Features:
- N-Ch 25 V, 0.68 A, RDS(ON)= 0.45 W @ VGS= 4.5 V
- P-Ch -25 V, -0.46 A, RDS(ON)= 1.1 W @ VGS= -4.5 V.
- Very low level gate drive requirements allowing direct
- operation in 3 V circuits. VGS(th) < 1.0V.
- Gate-Source Zener for ESD ruggedness.
>6kV Human Body Model
- Replace multiple dual NPN & PNP digital transistors.

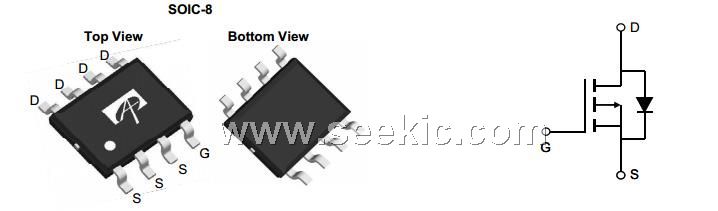

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

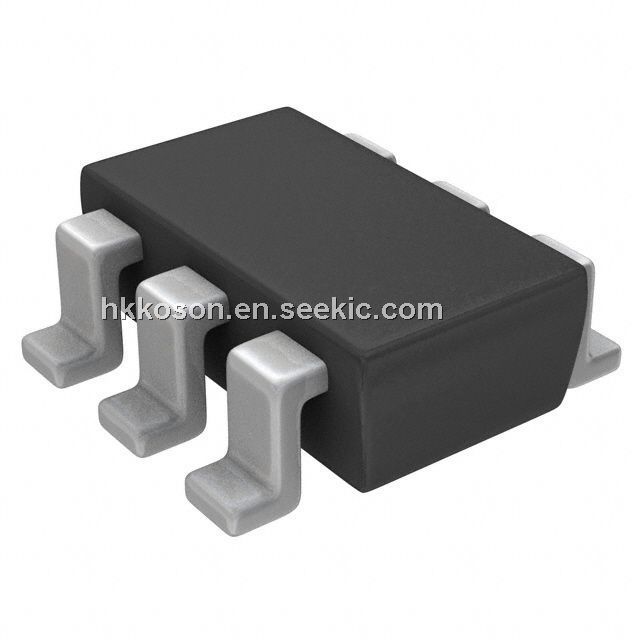

FDC6321C |
Fairchild Semiconductor |
MOSFET SSOT-6 COMP N-P-CH |
Data Sheet |
|
|
|||||||||||||
FDC6321C_Q |
Fairchild Semiconductor |
MOSFET SSOT-6 COMP N-P-CH |
Data Sheet |
Negotiable |
|
