Product Summary
The 2N6509 is a Reverse Blocking Thyristor. It is designed primarily for half-wave ac control applications, such as motor controls, heating controls and power supply crowbar circuits.
Parametrics
2N6509 absolute maximum ratings: (1)Peak Repetitive Off–State Voltage, VDRM, VRRM: 50 Volt; (2)On-State RMS Current, IT(RMS): 25 A; (3)Average On-State Current, IT(AV): 16 A; (4)Peak Non-repetitive Surge Current, ITSM: 250 A; (5)Forward Peak Gate Power, PGM: 20 Wat; (6)Forward Average Gate Power, PG(AV): 0.5 Wat; (7)Forward Peak Gate Current, IGM: 2.0 A; (8)Operating Junction Temperature Range, TJ: –40 to +125℃; (9)Storage Temperature Range, Tstg: –40 to +150℃.
Features
2N6509 features: (1)Glass Passivated Junctions with Center Gate Fire for Greater Parameter Uniformity and Stability; (2)Small, Rugged, Thermowatt Constructed for Low Thermal Resistance, High Heat Dissipation and Durability; (3)Blocking Voltage to 800 Volts; (4)300 A Surge Current Capability; (5)Device Marking: Logo, Device Type, e.g., 2N6504, Date Code.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

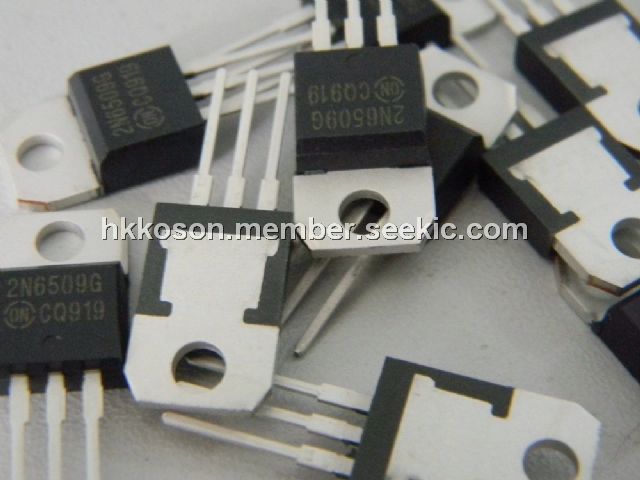

 2N6509G |
ON Semiconductor |
SCRs 800V 25A |
Data Sheet |
|
|
||||||||||||
|
2N6509T |
ON Semiconductor |
SCRs 800V 25A |
Data Sheet |
Negotiable |
|
||||||||||||
|
2N6509TG |
ON Semiconductor |
SCRs 800V 25A |
Data Sheet |
|
|
||||||||||||
|
2N6509 |
ON Semiconductor |
SCRs 800V 25A |
Data Sheet |
Negotiable |
|
||||||||||||
