Product Summary

The 74HC123D is a high-performance Logic IC.

Parametrics

74HC123D Parametrics:

Packaging   Tape & Reel (TR)
Logic Type Monostable
Independent Circuits 2
Schmitt Trigger Input Yes
Propagation Delay 65ns
Current - Output High, Low 5.2mA, 5.2mA
Voltage - Supply 2 V ~ 6 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO
Dynamic Catalog 74HC
Other Names 568-1390-2
74HC123D-T
74HC123D653
933713960653

Features

74HC123D Features:

  •  DC triggered from active HIGH or active LOW inputs
  •  Retriggerable for very long pulses up to 100 % duty factor
  •  Direct reset terminates output pulse
  •  Schmitt-trigger action on all inputs except for the reset input
  •  ESD protection:


 HBM JESD22-A114F exceeds 2000 V

 MM JESD22-A115-A exceeds 200 V

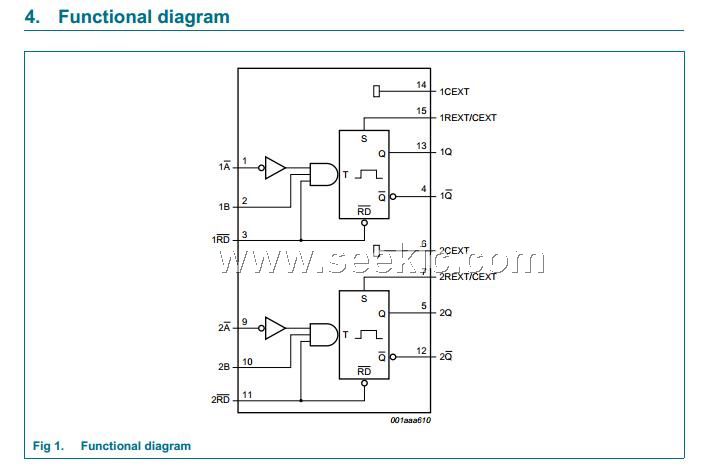

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74HC123D,652
74HC123D,652
NXP Semiconductors
Monostable Multivibrator DUAL MONO RETRIG
Data Sheet
0-1: $0.20
1-25: $0.17
25-100: $0.15
100-250: $0.12
74HC123D,653
74HC123D,653
NXP Semiconductors
Monostable Multivibrator DUAL RETRIG MONOSTABLE MULTI
Data Sheet
0-1: $0.08
1-25: $0.07
25-100: $0.07
100-250: $0.07
74HC123DB,112
74HC123DB,112
NXP Semiconductors
Monostable Multivibrator DUAL MONO MULTIVIB
Data Sheet
0-1: $0.23
1-25: $0.21
25-100: $0.20
100-250: $0.19
74HC123DB,118
74HC123DB,118
NXP Semiconductors
Monostable Multivibrator DUAL RETRIG MONOSTABLE MULTI
Data Sheet
0-1: $0.23
1-25: $0.22
25-100: $0.21
100-250: $0.20
74HC123DB
74HC123DB
NXP Semiconductors
Monostable Multivibrator DUAL MONO MULTIVIB RETRIG/RESET
Data Sheet
Negotiable
