Product Summary

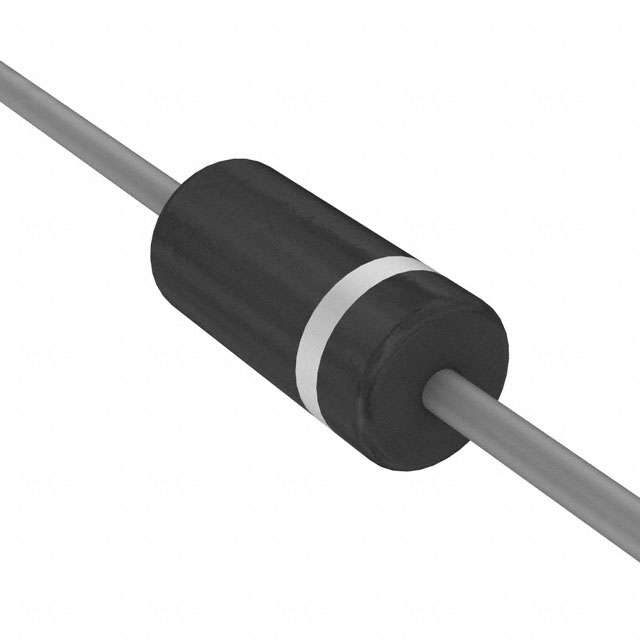

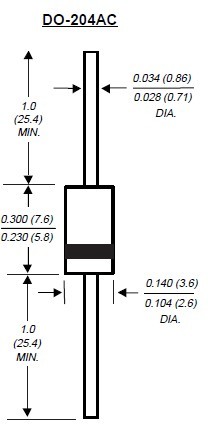

The EGP20G is a glass passivated fast efficient rectifier. Its package is DO-15.

Parametrics

Absolute maximum ratings: (1)Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, IFSM: 75.0Amps; (2)Maximum instantaneous forward voltage at 2.0A, VF: 1.25Volts; (3)Maximum reverse recovery time, trr: 50.0ns; (4)Typical junction capacitance, CJ: 45.0pF; (5)Operating junction and storage temperature range, TJ, TSTG: -65 to +150℃.

Features

Features: (1)Plastic package has Underwriters Laboratories Flammability Classification 94V-0; (2)Glass passivated cavity-free junction; (3)Superfast recovery time for high efficiency; (4)Low forward voltage, high current capability; (5)Low leakage current; (6)High surge current capability; (7)High temperature metallurgically bonded construction; (8)High temperature soldering guaranteed.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EGP20G-E3/1
EGP20G-E3/1
Vishay Semiconductors
Rectifiers 400 Volt 2.0A 50ns Glass Passivated
Data Sheet
Negotiable
EGP20G-E3/23
EGP20G-E3/23
Vishay Semiconductors
Rectifiers 400 Volt 2.0A 50ns Glass Passivated
Data Sheet
Negotiable
EGP20G-E3/54
EGP20G-E3/54
Vishay Semiconductors
Rectifiers 2.0 Amp 400 Volt
Data Sheet
0-1: $0.19
1-10: $0.17
10-50: $0.16
50-100: $0.14
EGP20G-E3/73
EGP20G-E3/73
Vishay Semiconductors
Rectifiers 400 Volt 2.0A 50ns Glass Passivated
Data Sheet
0-1: $0.17
1-10: $0.16
10-50: $0.15
50-100: $0.13
EGP20GHE3/73
EGP20GHE3/73
Vishay Semiconductors
Rectifiers 400 Volt 2.0A 50ns Glass Passivated
Data Sheet
0-2000: $0.10
2000-3100: $0.10
3100-4000: $0.10
EGP20G-TP
EGP20G-TP

DIODE GPP 2A 400V HI EFF DO15
Data Sheet
Negotiable
EGP20GHE3/54
EGP20GHE3/54
Vishay Semiconductors
Rectifiers 400 Volt 2.0A 50ns Glass Passivated
Data Sheet
0-1900: $0.17
1900-4000: $0.12
4000-8000: $0.10
EGP20G-E3/4
EGP20G-E3/4
Vishay Semiconductors
Rectifiers 400 Volt 2.0A 50ns Glass Passivated
Data Sheet
Negotiable
