Product Summary

The 74HCT00D is a high-performance Quad 2-input NAND gate.

Parametrics

74HCT00D Parametrics:

Packaging   Tape & Reel (TR)
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Features -
Voltage - Supply 4.5 V ~ 5.5 V
Current - Quiescent (Max) 40μA
Current - Output High, Low 4mA, 4mA
Logic Level - Low 0.8V
Logic Level - High 2V
Max Propagation Delay @ V, Max CL 12ns @ 4.5V, 50pF
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 14-SO

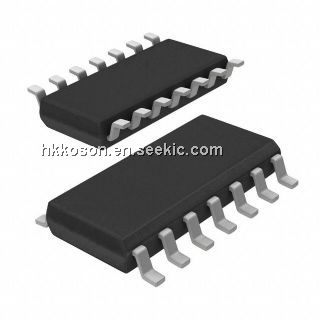

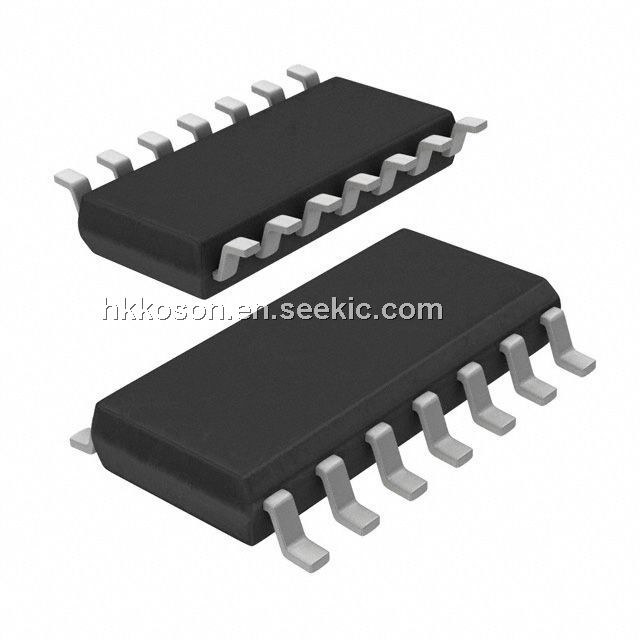

Package / Case 14-SOIC (0.154", 3.90mm Width)
Dynamic Catalog 74HCT
Other Names 568-1498-2
74HCT00D-T
74HCT00D653
933713370653

Features

74HCT00D Features:

  •  Input levels: TTL level
  •  ESD protection:


 HBM JESD22-A114F exceeds 2000 V

 MM JESD22-A115-A exceeds 200 V

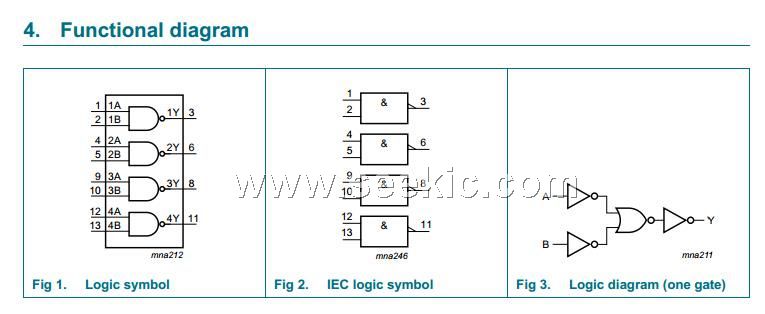

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74HCT00D,652
74HCT00D,652
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT NAND
Data Sheet
0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.05
74HCT00D,653
74HCT00D,653
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-IN NAND GATE 2INPUT
Data Sheet
0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.05
74HCT00DB,112
74HCT00DB,112
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT NAND
Data Sheet
0-1: $0.31
1-25: $0.27
25-100: $0.23
100-250: $0.20
74HCT00DB,118
74HCT00DB,118
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT NAND
Data Sheet
0-1: $0.31
1-25: $0.27
25-100: $0.23
100-250: $0.20
