Product Summary

The ACT212 is a super miniature twin type automotive relay.

Parametrics

ACT212 absolute maximum ratings: (1)Max. operating speed (at nominal switching capacity): 6 cpm; (2)Initial insulation resistance*4: Min. 100MΩ (at 500V DC); (3)Initial breakdown voltage*5, Between open contacts: 500 Vrms for 1 min; (4)Initial breakdown voltage*5, Between contacts and coil: 500 Vrms for 1 min; (5)Operate time*6, (at nominal voltage) (at 20℃ 68° F): Max. 10ms (Initial); (6)Release time*6, (at nominal voltage) (at 20℃ 68° F): Max. 10ms (Initial).

Features

ACT212 features: (1)Small & slim size; (2)Twin (1 Form C × 2); (3)Forward/reverse motor control is possible with a single relay; (4)Simple footprint enables ease of PC board layout.

Diagrams

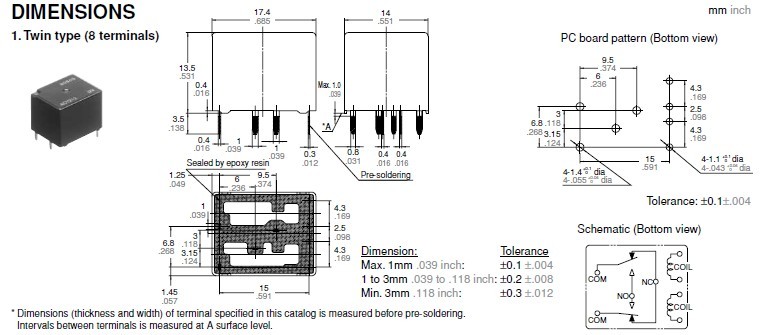

ACT212 DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ACT212
ACT212
Panasonic Electric Works
General Purpose / Industrial Relays 12VDC 1 FORM C X 2 20A 8 TERMINALS
Data Sheet
