Product Summary

The AD7528JR is a high-performance CMOS Dual 8-Bit Buffered Multiplying DAC.

Parametrics

AD7528JR Parametrics:

Packaging   Tube
Settling Time -
Number of Bits 8
Data Interface Parallel
Number of Converters 2
Voltage Supply Source Single Supply
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC W
Number of Outputs and Type 2 Current, Unipolar; 2 Current, Bipolar
Sampling Rate (Per Second) -
Dynamic Catalog 8 Bit

Features

AD7528JR Features:

  • On-Chip Latches for Both DACs
  • +5 V to +15 V Operation
  • DACs Matched to 1%
  • Four Quadrant Multiplication
  • TTL/CMOS Compatible
  • Latch Free (Protection Schottkys not Required)

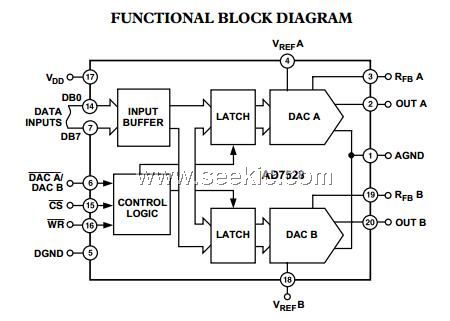

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7528JR
AD7528JR

IC DAC 8BIT DUAL MULTIPLY 20SOIC
Data Sheet
0-37: $7.18
AD7528JR-REEL
AD7528JR-REEL

IC DAC 8BIT DUAL MULT 20-SOIC
Data Sheet
Negotiable
AD7528JRZ
AD7528JRZ

IC DAC 8BIT DUAL MULT 20-SOIC
Data Sheet
0-1: $7.39
1-10: $6.72
10-100: $5.71
100-250: $5.21
250-500: $4.87
500-1000: $4.48
AD7528JRZ-REEL
AD7528JRZ-REEL

IC DAC 8BIT DUAL MULT 20-SOIC
Data Sheet
0-1000: $4.48
AD7528JRZ-REEL7
AD7528JRZ-REEL7

IC DAC 8BIT DUAL MULT 20SOIC
Data Sheet
0-1: $7.63
1-10: $6.92
10-25: $6.42
25-100: $5.88
AD7528JR-REEL7
AD7528JR-REEL7

IC DAC 8BIT DUAL MULT 20-SOIC
Data Sheet
0-400: $6.02
