Product Summary

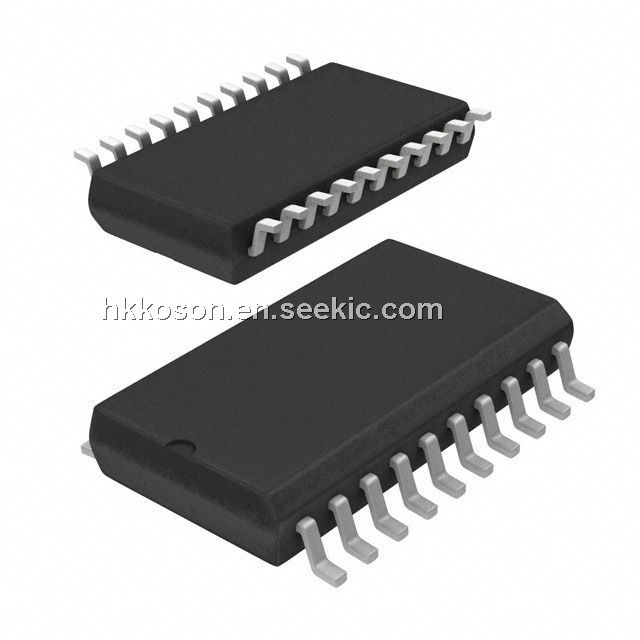

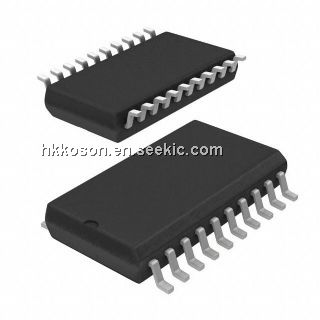

The AD7945BR is a high-performance Digital to Analog Converter.
Parametrics
AD7945BR Parametrics:
Packaging
Tube
Settling Time
600ns
Number of Bits
12
Data Interface
Parallel
Number of Converters
1
Voltage Supply Source
Single Supply
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
20-SOIC (0.295", 7.50mm Width)
Supplier Device Package
20-SOIC W
Number of Outputs and Type
1 Current, Unipolar; 1 Current, Bipolar
Sampling Rate (Per Second)
-
Dynamic Catalog
12 Bit
Features
AD7945BR Features:
- 12-Bit Multiplying DACs
- Guaranteed Specifications with +3.3 V/+5 V Supply
- 0.5 LSBs INL and DNL
- Low Power: 5 mW typ
- Fast Interface
- 40 ns Write Pulsewidth
- Low Glitch: 60 nV-s with Amplifier Connected
- Fast Settling: 600 ns to 0.01% with AD843

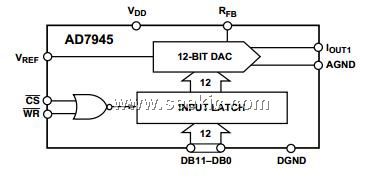

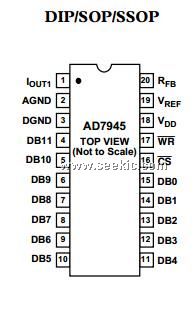

Diagrams
