Product Summary

The AD8052AR is a Low Cost, High Speed, Rail-to-Rail Amplifier.

Parametrics

AD8052AR Parametrics:

Packaging   Tube
Amplifier Type Voltage Feedback
Number of Circuits 2
Output Type Rail-to-Rail
Slew Rate 170 V/μs
Gain Bandwidth Product -
-3db Bandwidth 110MHz
Current - Input Bias 1.4μA
Voltage - Input Offset 1.8mV
Current - Supply 4.8mA
Current - Output / Channel 45mA
Voltage - Supply, Single/Dual (±) 3 V ~ 12 V, ±1.5 V ~ 6 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount

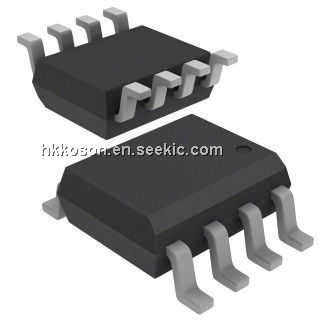

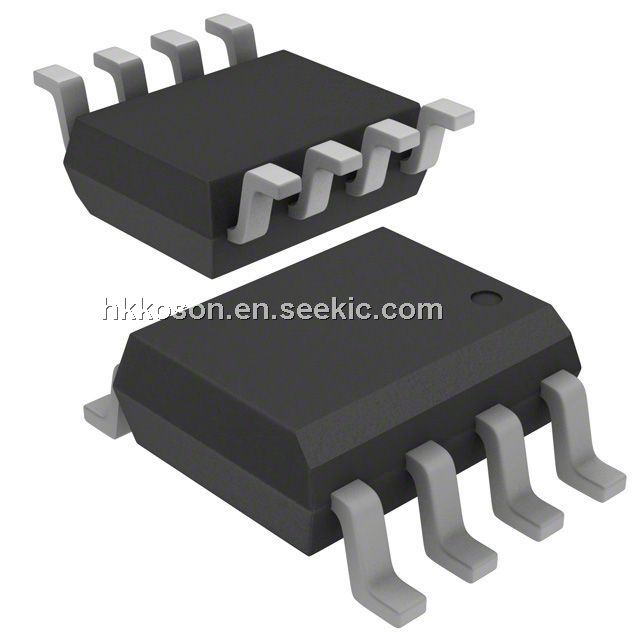

Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC N
Dynamic Catalog Voltage Feedback

Features

AD8052AR Features:

  • High speed and fast settling on 5 V


-110 MHz, ?3 dB bandwidth

-145 V/μs slew rate

-50 ns settling time to 0.1%

  • Single-supply operation


-Output swings to within 25 mV of either rail

-Input voltage range: ?0.2 V to +4 V; VS = 5 V

  • Video specifications (G = +2)


-0.1 dB gain flatness: 20 MHz; RL = 150 Ω

-Differential gain/phase: 0.03%/0.03°

  • Low distortion


-?80 dBc total harmonic @ 1 MHz, RL = 100 Ω

  • Outstanding load drive capability


-Drives 45 mA, 0.5 V from supply rails

-Drives 50 pF capacitive load (G = +1)

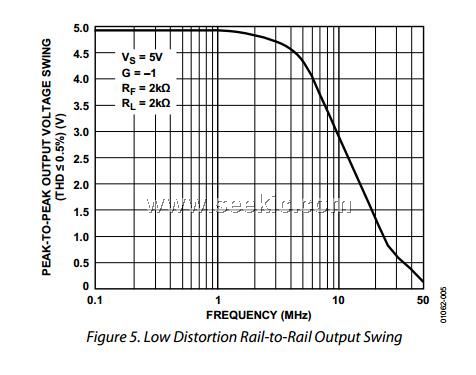

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8052AR
AD8052AR

IC OPAMP VF R-R DUAL LDIST 8SOIC
Data Sheet
0-98: $2.32
AD8052ARM-REEL
AD8052ARM-REEL

IC OPAMP VF R-R DUAL LDIST 8MSOP
Data Sheet
0-3000: $1.38
AD8052ARM-REEL7
AD8052ARM-REEL7

IC OPAMP VF R-R DUAL LDIST 8MSOP
Data Sheet
0-1000: $1.44
AD8052ARMZ
AD8052ARMZ

IC OPAMP VF R-R DUAL LDIST 8MSOP
Data Sheet
0-1: $2.50
1-10: $2.23
10-25: $2.00
25-100: $1.83
100-250: $1.65
250-500: $1.48
500-1000: $1.25
1000-2500: $1.19
AD8052ARMZ-REEL7
AD8052ARMZ-REEL7

IC OPAMP VF R-R DUAL LDIST 8MSOP
Data Sheet
0-1000: $1.25
AD8052AR-REEL
AD8052AR-REEL

IC OPAMP VF R-R DUAL LDIST 8SOIC
Data Sheet
0-2500: $1.38
AD8052ARZ-REEL7
AD8052ARZ-REEL7

IC OPAMP VF R-R DUAL LDIST 8SOIC
Data Sheet
0-750: $1.34
AD8052ARM-EBZ
AD8052ARM-EBZ

BOARD EVAL FOR AD8052ARM
Data Sheet
0-1: $14.38
