Product Summary
The AD9779ABSVZ is a high-performance Digital-to-Analog Converter.
Parametrics
AD9779ABSVZ Parametrics:
Packaging
Tray
Settling Time
-
Number of Bits
16
Data Interface
Serial, SPI?
Number of Converters
2
Voltage Supply Source
Analog and Digital
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
100-TQFP Exposed Pad
Supplier Device Package
100-TQFP-EP (14x14)
Number of Outputs and Type
4 Current, Unipolar
Sampling Rate (Per Second)
1G
Dynamic Catalog
16 Bit
Features
AD9779ABSVZ Features:
- Low power: 1.0 W @ 1 GSPS, 600 mW @ 500 MSPS, full operating conditions
- Single carrier W-CDMA ACLR = 80 dBc @ 80 MHz IF
- Analog output: adjustable 8.7 mA to 31.7 mA,
- RL = 25 Ω to 50 Ω
- Novel 2×, 4×, and 8× interpolator/coarse complex modulator
- allows carrier placement anywhere in DAC bandwidth
- Auxiliary DACs allow control of external VGA and offset control
- Multiple chip synchronization interface
- High performance, low noise PLL clock multiplier
- Digital inverse sinc filter
- 100-lead, exposed paddle TQFP

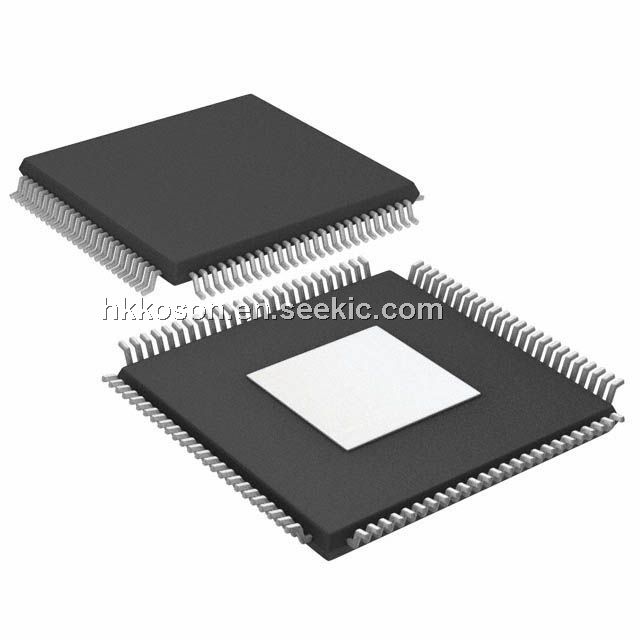

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9779ABSVZ |
|
IC DAC 16BIT 1.0GSPS 100TQFP |
Data Sheet |
|
|
||||||||||||||
|
AD9779ABSVZRL |
|
DAC 16BIT 1.0GSPS 100-TQFP |
Data Sheet |
|
|
||||||||||||||
