Product Summary

The ADG211AKR is a high-performance Interface IC.

Parametrics

ADG211AKR Parametrics:

Packaging   Tube
Function Switch
Circuit 4 x SPST - NC
On-State Resistance 115 Ohm
Voltage Supply Source Dual Supply
Voltage - Supply, Single/Dual (±) ±15V
Current - Supply 600μA
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO
Dynamic Catalog Switch

Features

ADG211AKR Features:

  • 44 V supply maximum rating
  • ±15 V analog signal range
  • Low RON: 115 Ω maximum
  • Low leakage: 0.5 nA typical
  • Break-before-make switching
  • Single supply operation possible
  • Extended plastic temperature range: ?40°C to +85°C
  • TTL/CMOS compatible

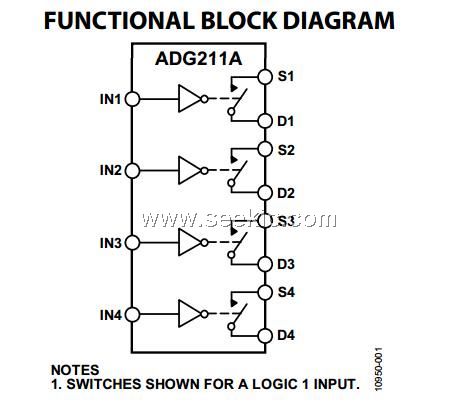

Diagrams

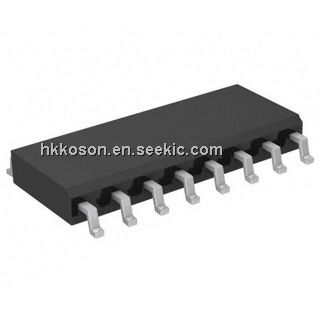

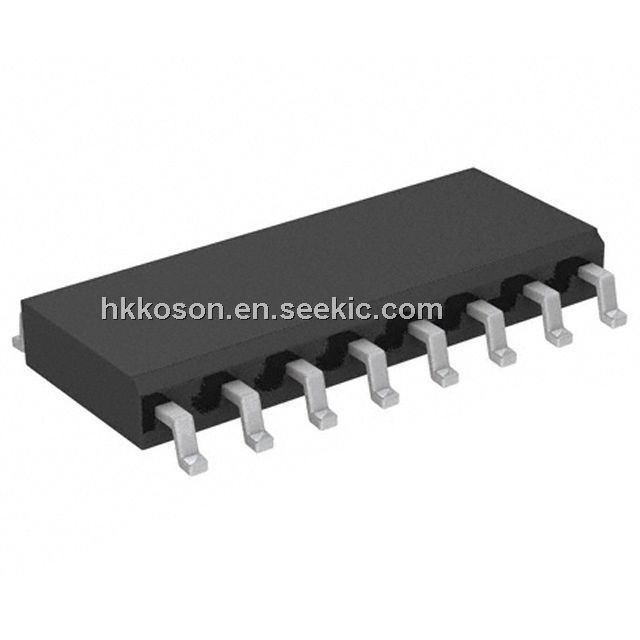

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG211AKR
ADG211AKR

IC SWITCH QUAD SPST 16SOIC
Data Sheet
0-144: $1.78
ADG211AKR-REEL
ADG211AKR-REEL

IC SWITCH QUAD SPST 16SOIC
Data Sheet
Negotiable
ADG211AKRZ-REEL7
ADG211AKRZ-REEL7

IC SWITCH QUAD SPST 16SOIC
Data Sheet
0-1000: $1.01
1000-2000: $0.96
ADG211AKRZ-REEL
ADG211AKRZ-REEL

IC SWITCH QUAD SPST 16SOIC
Data Sheet
0-2500: $0.96
ADG211AKR-REEL7
ADG211AKR-REEL7

IC SWITCH QUAD SPST 16SOIC
Data Sheet
Negotiable
ADG211AKRZ
ADG211AKRZ

IC SWITCH QUAD SPST 16SOIC
Data Sheet
0-1: $2.01
1-10: $1.80
10-100: $1.47
100-250: $1.33
250-500: $1.19
500-1000: $1.01
1000-2500: $0.96
