Product Summary

The AM26LV31CNSR is a high-performance LOW-VOLTAGE HIGH-SPEED QUADRUPLE DIFFERENTIAL LINE DRIVERS.

Parametrics

AM26LV31CNSR Parametrics:

Packaging Tape & Reel (TR)
Type Driver
Protocol RS422
Number of Drivers/Receivers 4/0
Duplex -
Receiver Hysteresis -
Data Rate -
Voltage - Supply 3 V ~ 3.6 V
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount

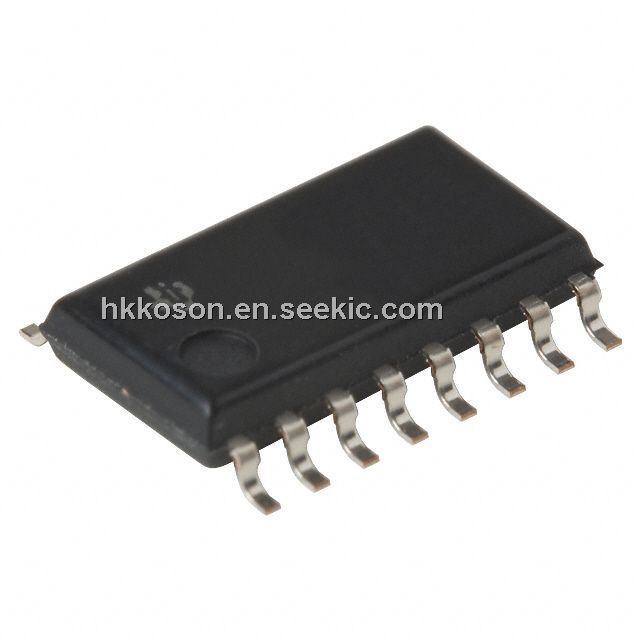

Package / Case 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package 16-SO
Dynamic Catalog RS-422 Differential Line Driver
Other Names 296-25913-2
AM26LV31CNSR-ND

Features

AM26LV31CNSR Features:

? Switching Rates up to 32 MHz
? Operate From a Single 3.3-V Supply
? Propagation Delay Time . . . 8 ns Typ
? Pulse Skew Time . . . 500 ps Typ
? High Output-Drive Current . . . ±30 mA
? Controlled Rise and Fall Times . . . 3 ns Typ
? Differential Output Voltage With 100-Ω
Load . . . 1.5 V Typ
? Ultra-Low Power Dissipation
– dc, 0.3 mW Max
– 32 MHz All Channels (No Load), 385 mW Typ
? Accept 5-V Logic Inputs With 3.3-V Supply
? High Output Impedance in Power-Off Condition
? Driver Output Short-Protection Circuit

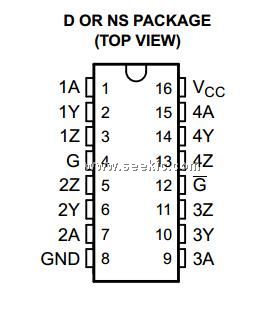

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AM26LV31CNSR
AM26LV31CNSR

Texas Instruments

Buffers & Line Drivers LoVltg Hi-Sp Quad Diff Line Driver

Data Sheet

0-1650: $0.22
1650-2000: $0.22
AM26LV31CNSRE4
AM26LV31CNSRE4

Texas Instruments

Buffers & Line Drivers LoVltg Hi-Sp Quad Diff Line Driver

Data Sheet

0-1550: $0.24
1550-2000: $0.24
2000-5000: $0.23
5000-10000: $0.22
AM26LV31CNSRG4
AM26LV31CNSRG4

Texas Instruments

Buffers & Line Drivers LoVltg Hi-Sp Quad Diff Line Driver

Data Sheet

0-1550: $0.24
1550-2000: $0.24
2000-5000: $0.23
5000-10000: $0.22
