Product Summary

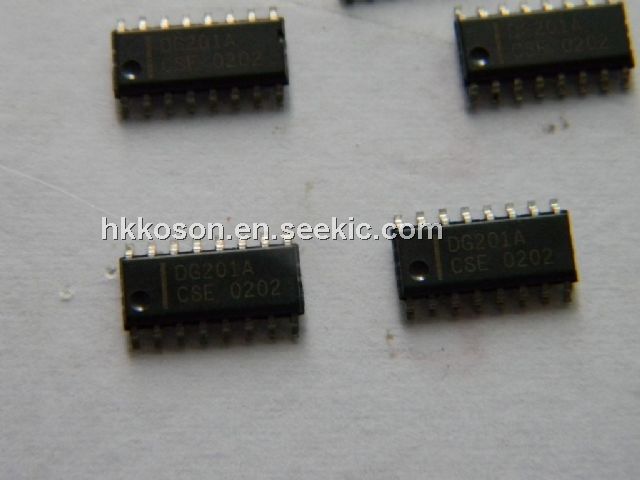

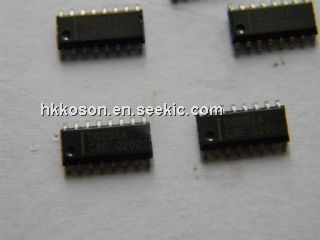

The DG201ACSE is a high-performance ,high-quality MAXIM Quad SPST CMOS Analog Switches.
Parametrics
DG201ACSE Parametrics:
| Packaging |
Tube |
| Function | Switch |
|---|---|
| Circuit | 4 x SPST - NC |
| On-State Resistance | 200 Ohm |
| Voltage Supply Source | Dual Supply |
| Voltage - Supply, Single/Dual (±) | ±4.5 V ~ 18 V |
| Current - Supply | 20μA |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package/Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
Features
DG201ACSE Features:
- Guaranteed ±4.5V to ±18V Operation
- No VL Supply Required
- Nonlatching with Supplies Turned Off and Input Signals Present
- CMOS and TTL Logic Compatible
- Monolithic, Low-Power CMOS Design

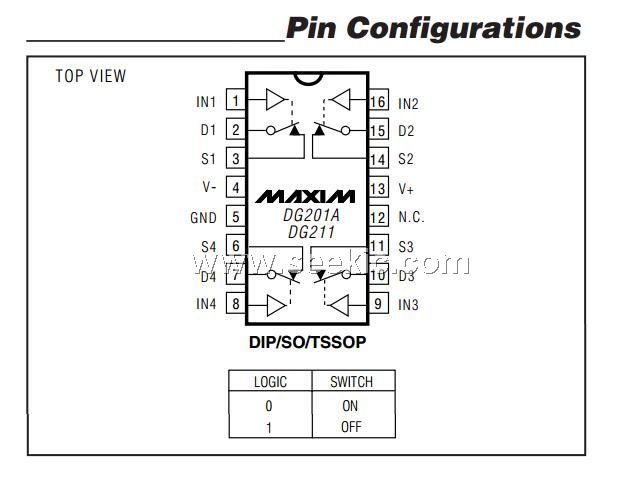

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DG201ACSE |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
 |
DG201ACSE+ |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS |
Data Sheet |
|
|
||||||||||||
|
DG201ACSE+T |
Maxim Integrated Products |
Analog Switch ICs Quad SPST CMOS |
Data Sheet |
|
|
||||||||||||
 |
DG201ACSE-T |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
