Product Summary
The EP4CE15F23I7N is a high-performance Cyclone IV FPGA Device.
Parametrics
EP4CE15F23I7N Parametrics:
Number of LABs/CLBs
963
Number of Logic Elements/Cells
15408
Total RAM Bits
516096
Number of I /O
343
Number of Gates
-
Voltage - Supply
1.15 V ~ 1.25 V
Mounting Type
Surface Mount
Operating Temperature
-40°C ~ 100°C

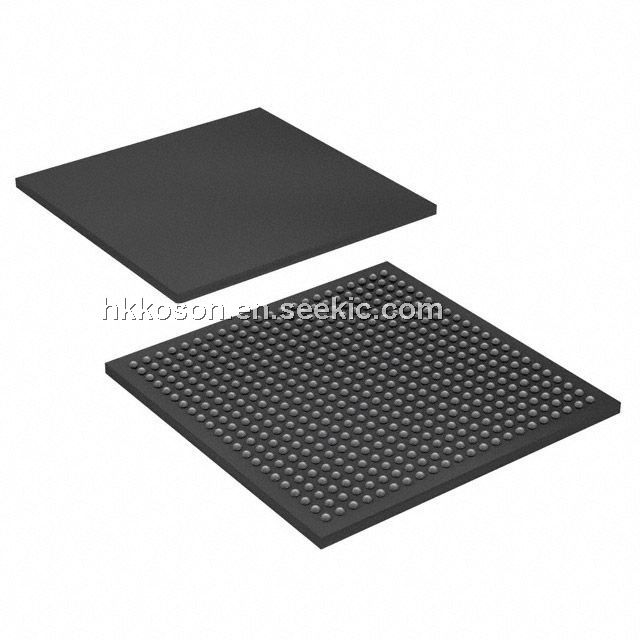

Package / Case
484-BGA
Supplier Device Package
484-FBGA (23x23)
Dynamic Catalog
Cyclone? IV E/GX
Other Names
544-2810
EP4CE15F23I7N-ND
Features
EP4CE15F23I7N Features:
■ Low-cost, low-power FPGA fabric
■ Cyclone IV GX devices offer up to eight high-speed transceivers
■ Cyclone IV GX devices offer dedicated hard IP for PCI Express (PIPE) (PCIe) Gen 1:
■ ×1, ×2, and ×4 lane configurations
■ End-point and root-port configurations
■ Up to 256-byte payload
■ One virtual channel
■ 2 KB retry buffer
■ 4 KB receiver (Rx) buffer
■ Cyclone IV GX devices offer a wide range of protocol support:
■ PCIe (PIPE) Gen 1 ×1, ×2, and ×4 (2.5 Gbps)
■ Gigabit Ethernet (1.25 Gbps)
■ CPRI (up to 3.072 Gbps)
■ XAUI (3.125 Gbps)
■ Triple rate serial digital interface (SDI) (up to 2.97 Gbps)
■ Serial RapidIO (3.125 Gbps)
■ Basic mode (up to 3.125 Gbps)
■ V-by-One (up to 3.0 Gbps)
■ DisplayPort (2.7 Gbps)
■ Serial Advanced Technology Attachment (SATA) (up to 3.0 Gbps)
■ OBSAI (up to 3.072 Gbps)
■ Up to 532 user I/Os
■ Up to eight phase-locked loops (PLLs) per device
■ Offered in commercial and industrial temperature grades

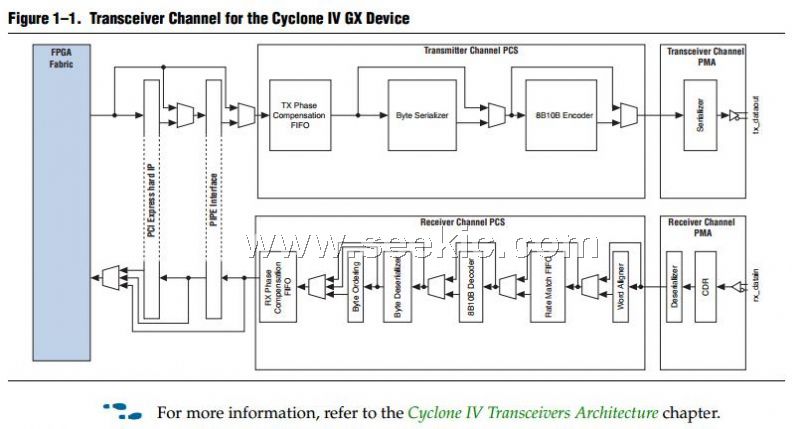

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP4CE15F23I7N |
|
IC CYCLONE IV FPGA 15K 484FBGA |
Data Sheet |
|
|
||||||
