Product Summary

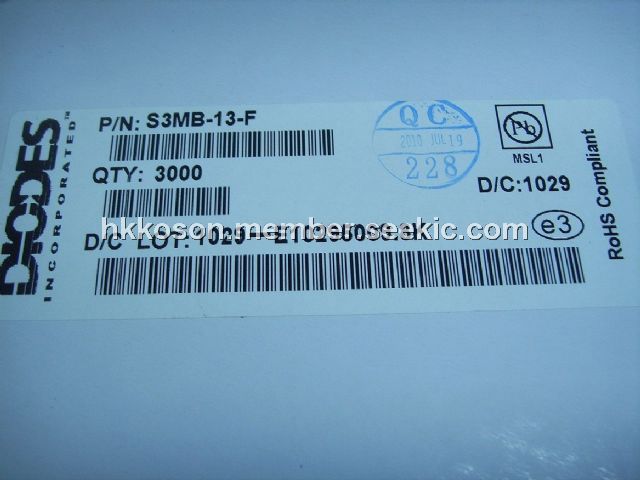

The S3MB-13-F is a 3.0A surface mount glass passivated rectifier. Its package is SMB.
Parametrics
Absolute maximum ratings: (1)Average Rectified Output Current @ TT = 75℃, IO: 3.0 A; (2)Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load, IFSM: 100 A; (3)Forward Voltage @ IF = 3.0A, VFM: 1.15 V; (4)Typical Total Capacitance, CT: 40 pF; (5)Operating and Storage Temperature Range, Tj, TSTG: -65 to +150 ℃.
Features
Features: (1)Glass Passivated Die Construction; (2)Low Forward Voltage Drop and High Current Capability; (3)Surge Overload Rating to 100A Peak; (4)Ideally Suited for Automatic Assembly; (5)Lead Free Finish/RoHS Compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 S3MB-13-F |
Diodes Inc. |
Rectifiers 1000V 3A |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
S3MB |
Taiwan Semiconductor |
Rectifiers 3A,1000V,GLASS Pass SMB Rect |
Data Sheet |
|
|
||||||||||||
|
S3MB-13 |
Diodes Inc. |
Rectifiers 1000V 3A |
Data Sheet |
Negotiable |
|
||||||||||||
|
S3MB-13-F |
Diodes Inc. |
Rectifiers 1000V 3A |
Data Sheet |
|
|
||||||||||||
|
S3MB-TP |
Micro Commercial Components (MCC) |
Rectifiers Standard 1000V 3A |
Data Sheet |
|
|
||||||||||||
