Product Summary
The ICE3BR4765J is a high-performance Off-Line SMPS Current Mode Controller.
Parametrics
ICE3BR4765J Parametrics:
Packaging
Tube
Output Isolation
Isolated
Frequency Range
56.5kHz ~ 73.5kHz
Voltage - Input
10.5 V ~ 27 V
Voltage - Breakdown
650V
Voltage - Output
-
Power (Watts)
27W
Operating Temperature
-25°C ~ 130°C
Package / Case

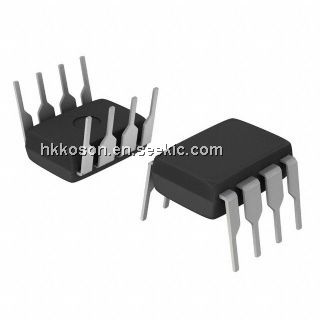

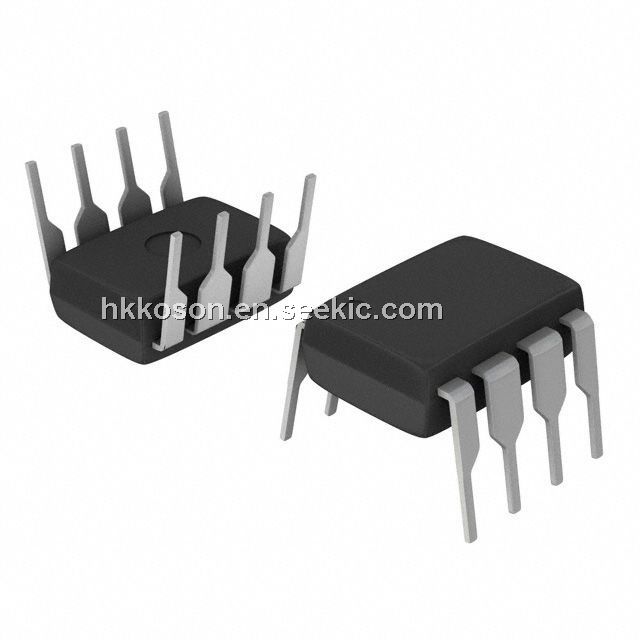

8-DIP (0.300", 7.62mm)
Supplier Device Package
PG-DIP-8
Other Names
ICE3BR4765JFKLA1
SP000358120
Features
ICE3BR4765J Features:
? 650V avalanche rugged CoolMOS? with built-in Startup Cell
? Active Burst Mode for lowest Standby Power
? Fast load jump response in Active Burst Mode
? 65kHz internally fixed switching frequency
? Auto Restart Protection Mode for Overload, Open Loop, VCC Undervoltage, Overtemperature & Overvoltage
? Built-in Soft Start
? Built-in blanking window with extendable blanking time for short duration high current
? External auto-restart enable pin
? Max Duty Cycle 75%
? Overall tolerance of Current Limiting < ±5%
? Internal PWM Leading Edge Blanking
? BiCMOS technology provide wide VCC range
? Built-in Frequency jitter and soft driving for low EMI

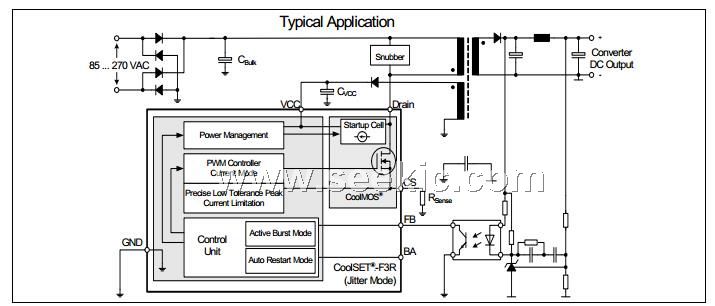

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICE3BR4765J |
Infineon Technologies |
Current Mode PWM Controllers COOLSET F3 650V |
Data Sheet |
|
|
||||||||||||
 |
ICE3BR4765JG |
Infineon Technologies |
Current Mode PWM Controllers SMPS Current Cntrl w/ Integrated 650V |
Data Sheet |
|
|
||||||||||||
|
ICE3BR4765JZ |
Infineon Technologies |
Current Mode PWM Controllers Off-Line SMPS Curr Cntlr w/Integrt 650V |
Data Sheet |
|
|
||||||||||||
