Product Summary

The PMBT3906 is a PNP switching transistor. Its package is SOT23. It is suitable for Telephony and professional communication equipment.

Parametrics

Absolute maximum ratings:(1)VCBO, collector-base voltage: -40 V max; (2)VCEO, collector-emitter voltag:-40 V max; (3)VEBO, emitter-base voltage: -6 V max; (4)IC, collector current (DC): -100 mA max; (5)ICM, peak collector current: -200 mA max; (6)IBM, peak base current: -100 mA max; (7)Ptot, total power dissipation: 250 mW max; (8)Tstg, storage temperature: -65 to +150℃; (9)Tj, junction temperature: +150℃ max; (10)Tamb, operating ambient temperature: -65 to +150℃.

Features

Features: (1) low voltage; (2)low current.

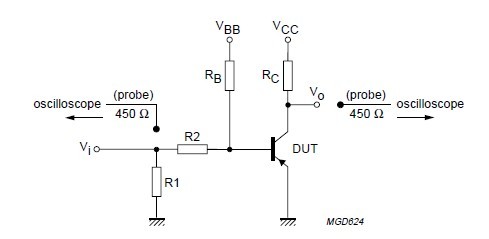

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PMBT3906
PMBT3906
Other

Data Sheet
Negotiable
PMBT3906 /T3
PMBT3906 /T3
NXP Semiconductors
Transistors Bipolar (BJT) TRANS SW TAPE-11
Data Sheet
Negotiable
PMBT3906,215
PMBT3906,215
NXP Semiconductors
Transistors Bipolar (BJT) PNP SW 200MA 40V
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-500: $0.01
PMBT3906VS,115
PMBT3906VS,115
NXP Semiconductors
Transistors Bipolar (BJT) GENERAL PURPOSE TRANSISTOR
Data Sheet
0-1: $0.03
1-25: $0.02
25-100: $0.02
100-250: $0.02
PMBT3906M,315
PMBT3906M,315
NXP Semiconductors
Transistors Bipolar (BJT) GENERAL PURPOSE TRANSISTOR
Data Sheet
0-1: $0.03
1-25: $0.02
25-100: $0.02
100-250: $0.02
PMBT3906,235
PMBT3906,235
NXP Semiconductors
Transistors Bipolar (BJT) TRANS SW TAPE-11
Data Sheet
0-1: $0.07
1-25: $0.07
25-100: $0.05
100-250: $0.03
PMBT3906YS,115
PMBT3906YS,115
NXP Semiconductors
Transistors Bipolar (BJT) DUALTRANS SW TAPE-7
Data Sheet
0-1: $0.03
1-25: $0.02
25-100: $0.02
100-3000: $0.02
PMBT3906YS T/R
PMBT3906YS T/R
NXP Semiconductors
Transistors Bipolar (BJT) DUALTRANS SW TAPE-7
Data Sheet
Negotiable
