Product Summary
The ISL6251AHAZ is a high-performance Low Cost Multi-Chemistry Battery Charger Controller.
Parametrics
ISL6251AHAZ Parametrics:
Packaging
Tube
Function
Charge Management
Battery Chemistry
Li-Ion, Li-Pol, NiMH
Voltage - Supply
7 V ~ 25 V
Operating Temperature
-10°C ~ 100°C
Mounting Type
Surface Mount

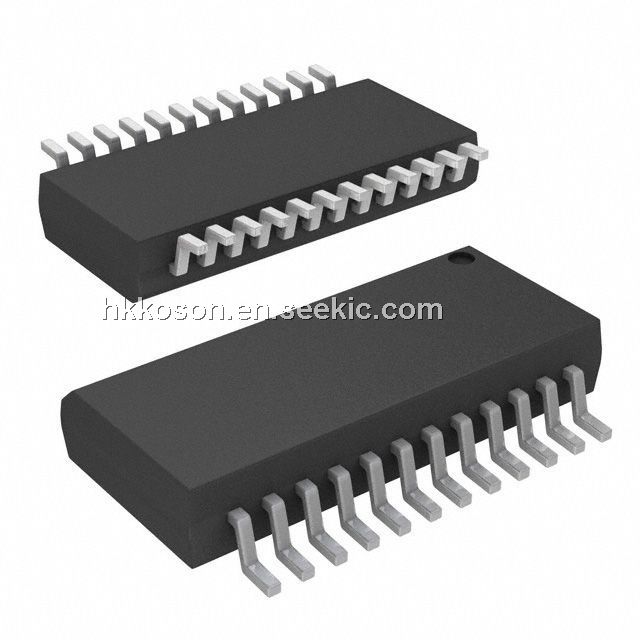

Package / Case
24-SSOP (0.154", 3.90mm Width)
Supplier Device Package
24-QSOP
Features
ISL6251AHAZ Features:
? ±0.5% Charge Voltage Accuracy (-10°C to 100°C)
? ±3% Accurate Input Current Limit
? ±3% Accurate Battery Charge Current Limit
? Programmable Charge Current Limit, Adapter Current Limit and Charge Voltage
? Fixed 300kHz PWM Synchronous Buck Controller with Diode Emulation at Light Load
? Output for Current Drawn from AC Adapter
? AC Adapter Present Indicator
? Fast Input Current Limit Response
? Input Voltage Range 7V to 25V
? Support 2, 3 and 4 Cells Battery Pack
? Up to 17.64V Battery-Voltage Set Point
? Thermal Shutdown
? Support Pulse Charging
? Less than 10μA Battery Leakage Current
? Charge Any Battery Chemistry: Li-Ion, NiCd, NiMH, etc.
? Pb-Free Plus Anneal Available (RoHS Compliant)

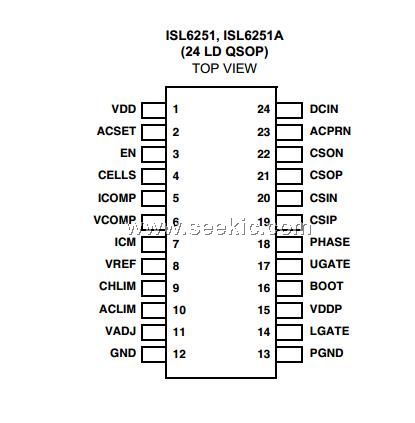

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL6251AHAZ |
|
IC BATTERY CHARGER CTRLR 24-QSOP |
Data Sheet |
|
|
||||||
|
ISL6251AHAZ-T |
|
IC BATTERY CHARGER CTRLR 24-QSOP |
Data Sheet |
|
|
||||||
