Product Summary

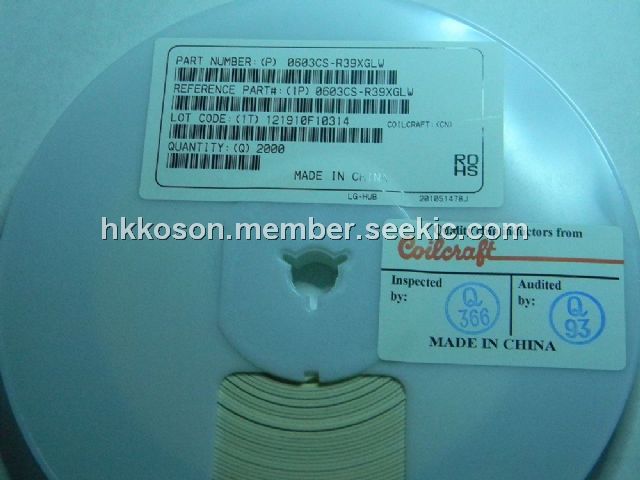

The 0603CS-R39XGLW is a Chip Inductor. Ultra-small size, exceptional Q and high SRFs make the 0603CS-R39XGLW ideal for high frequency applications where size is at a premium. It also has excellent DCR and current carrying characteristics.
Parametrics
0603CS-R39XGLW general specifications: (1)inductance:390nH@100MHz; (2)percent tolerance:5.2; (3)Qmin:25; (4)SRF min:0.780GHz; (5)DCR max:4.5ohms; (6)Irms:100mA; (7)color dot:yellow.
Features
0603CS-R39XGLW features: (1)Core material:Ceramic; (2)Terminations:RoHS compliant silver-palladium-platinum-glass frit, Other terminations available at additional cost; (3)Weight:3.2 – 3.7 mg; (4)Ambient temperature:–40℃to +125℃ with Irms current, +125℃ to +140℃ with derated current; (5)Storage temperature Component: –40℃ to +140℃; (6)Packaging: –40℃ to +80℃.
Diagrams
 |
