Product Summary

The L6201PS is a high-performance Power Management IC.

Parametrics

L6201PS Parametrics:

Packaging   Tube
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Power Bridge - Logic Driven Power Stage
Output Configuration Full H-Bridge, (1) Single
Interface Parallel
Applications General Purpose
Current - Output 4A
Voltage - Supply 12 V ~ 48 V
Voltage - Load 12 V ~ 48 V
Operating Temperature -40°C ~ 150°C
Mounting Type Surface Mount

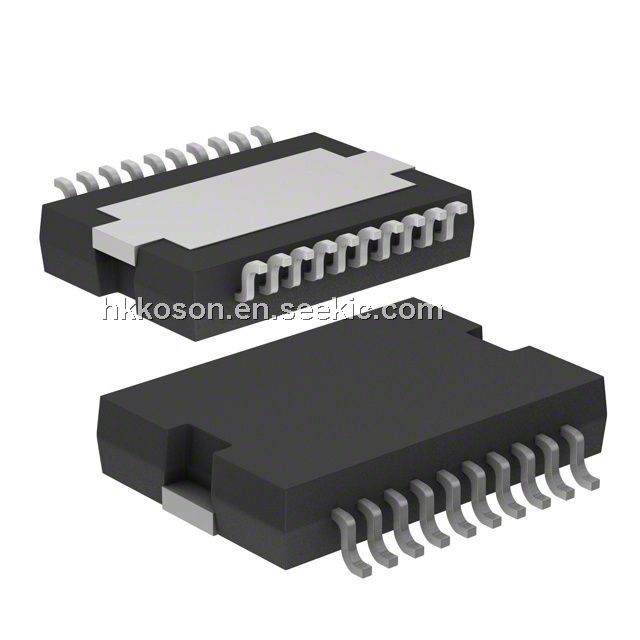

Package / Case 20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package PowerSO-20
Other Names 497-1419-5

Features

L6201PS Features:

  • SUPPLY VOLTAGE UP TO 48V
  • 5A MAX PEAK CURRENT (2A max. for L6201)
  • RDS (ON) 0.3 Ω (typical value at 25 °C)
  • CROSS CONDUCTION PROTECTION
  • TTL COMPATIBLE DRIVE
  • OPERATING FREQUENCY UP TO 100 KHz
  • THERMAL SHUTDOWN
  • INTERNAL LOGIC SUPPLY
  • HIGH EFFICIENCY

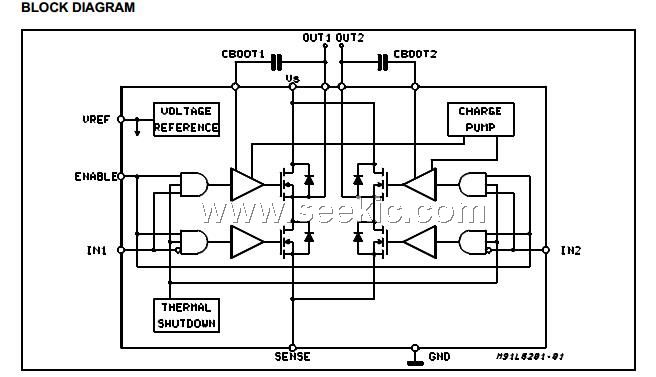

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L6201PS
L6201PS
STMicroelectronics
Motor / Motion / Ignition Controllers & Drivers DMOS Full Bridge
Data Sheet
0-1: $6.18
1-10: $5.24
10-100: $4.31
100-250: $3.64
L6201PSTR
L6201PSTR
STMicroelectronics
Motor / Motion / Ignition Controllers & Drivers DMOS Full Bridge
Data Sheet
0-1: $5.53
1-10: $4.52
10-100: $4.09
100-250: $3.75
