Product Summary

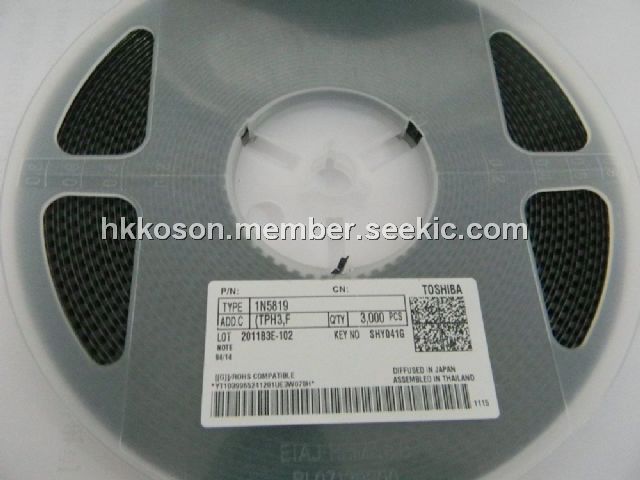

The 1N5819 is a 1A Schottky Rectifier.
Parametrics
1N5819 absolute maximum ratings: (1)Average Rectified Current:1.0A; (2)Non-repetitive Peak Forward Surge Current:25A; (3)Total Device Dissipation:1.25W; (4)Thermal Resistance, Junction to Ambient:80℃/W; (5)Storage Temperature Range:-65 to 125℃; (6)Operating Junction Temperature:-65 to 125℃.
Features
1N5819 features: (1)1.0 ampere operation at TA = 90℃ with no thermal runaway; (2)For use in low voltage, high frequency inverters free wheeling, and polarity protection applications.

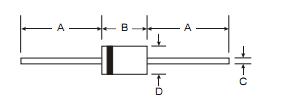

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1N5819-E3/1 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 40 Volt 1.0 Amp 25 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
1N5819-E3/23 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) Vr/40V Io/1A |
Data Sheet |
Negotiable |
|
||||||||||||
|
1N5819-E3/3 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) Vr/40V Io/1A |
Data Sheet |
Negotiable |
|
||||||||||||
|
1N5819-E3/4 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) Vr/40V Io/1A |
Data Sheet |
Negotiable |
|
||||||||||||
|
1N5819-E3/51 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) Vr/40V Io/1A |
Data Sheet |
|
|
||||||||||||
|
1N5819-E3/53 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) Vr/40V Io/1A |
Data Sheet |
|
|
||||||||||||
|
1N5819-E3/54 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) Vr/40V Io/1A |
Data Sheet |
|
|
||||||||||||
 |
1N5819G |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 1A 40V |
Data Sheet |
|
|
||||||||||||
