Product Summary

The L6599D is a high-performance High-voltage resonant controller.

Parametrics

L6599D Parametrics:

Packaging Tube
Applications Resonant Converter Controller
Voltage - Input -
Voltage - Supply 8.85 V ~ 16 V
Current - Supply 3.5mA
Operating Temperature 0°C ~ 105°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO

Features

L6599D Features:


  • 50 % duty cycle, variable frequency control of resonant half-bridge
  • High-accuracy oscillator
  • Up to 500 kHz operating frequency
  • Two-level OCP: frequency-shift and latched shutdown
  • Interface with PFC controller
  • Latched disable input
  • Burst-mode operation at light load
  • Input for power-ON/OFF sequencing or brownout protection
  • Non-linear soft-start for monotonic output voltage rise
  • 600 V-rail compatible high-side gate driver with integrated bootstrap diode and high dV/dt immunity
  • -300/800 mA high-side and low-side gate drivers with UVLO pull-down

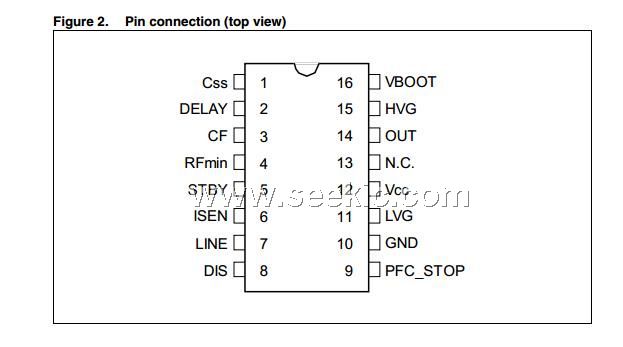

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L6599D
L6599D
STMicroelectronics
Soft Switching PWM Controllers Hi Vltg resonant Controller
Data Sheet
Negotiable
L6599DTR
L6599DTR
STMicroelectronics
Soft Switching PWM Controllers Hi Vltg resonant Controller
Data Sheet
Negotiable
