Product Summary

The LM348DR is a high-performance QUADRUPLE OPERATIONAL AMPLIFIER.

Parametrics

LM348DR Parametrics:

Packaging Tape & Reel (TR)
Amplifier Type General Purpose
Number of Circuits 4
Output Type -
Slew Rate 0.5 V/μs
Gain Bandwidth Product 1MHz
-3db Bandwidth -
Current - Input Bias 30nA
Voltage - Input Offset 1mV
Current - Supply 2.4mA
Current - Output / Channel 25mA
Voltage - Supply, Single/Dual (±) 8 V ~ 36 V, ±4 V ~ 18 V
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Package / Case 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SOIC
Dynamic Catalog General Purpose
Other Names 296-14600-2

Features

LM348DR Features:


  •  μA741 Operating Characteristics
  •  Low Supply-Current Drain . . . 0.6 mA Typ(per amplifier)
  •  Low Input Offset Voltage
  •  Low Input Offset Current
  •  Class AB Output Stage
  •  Input/Output Overload Protection

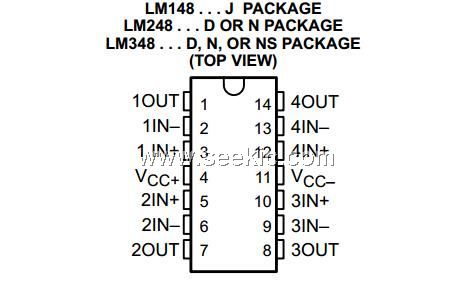

Diagrams

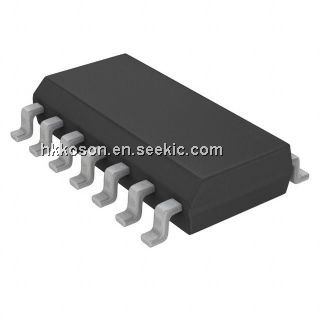

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM348DR
LM348DR
Texas Instruments
Operational Amplifiers - Op Amps Quad GP Op Amp
Data Sheet
0-1: $0.33
1-25: $0.23
25-100: $0.19
100-250: $0.16
LM348DRE4
LM348DRE4
Texas Instruments
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp
Data Sheet
0-1: $0.24
1-25: $0.19
25-100: $0.16
100-250: $0.14
LM348DRG4
LM348DRG4
Texas Instruments
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp
Data Sheet
0-1: $0.24
1-25: $0.19
25-100: $0.16
100-250: $0.14
