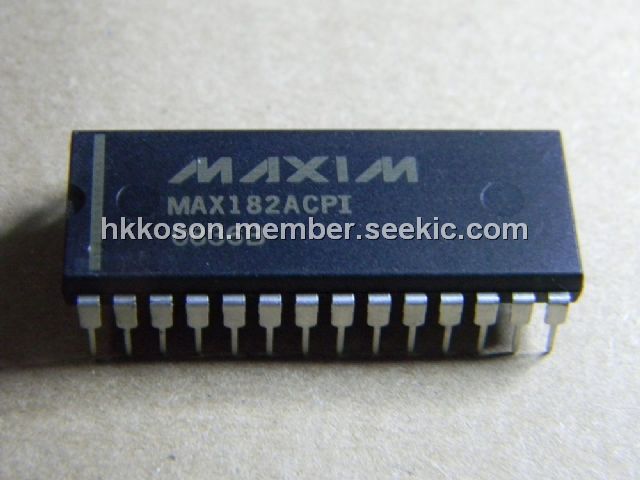

Product Summary

The MAX182ACPI is a 12-bit analog-to-digital converter (ADC). The device operates from a single +5V supply and accepts a 0V to 5V analog input. The internal reference accuracy of the MAX182ACPI is ±0.3%. The applications of the MAX182ACPI include Audio and telecom processing, Digital Signal Processing, High speed Data Acquisition and High-Accuracy Process Control.

Parametrics

MAX182ACPI absolute maximum ratings: (1)VDD to DGND: -0.3V to +17V; (2)AIN to AGND: -0.3V to (VDD + 0.3V); (3)REF to AGND: -0.3V to (VDD + 0.3V); (4)Digital Inputs to DGND: -0.3V to (VDD + 0.3V); (5)Digital Outputs to DGND: -0.3V to (VDD + 0.3V); (6)Continuous Power Dissipation: 1000mW; (11)Operating Temperature Ranges: 0℃ to +70℃; (12)Storage Temperature Range: -60℃ to +150℃; (13)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX182ACPI features: (1)Continuous transparent calibration of offset and gain; (2)True 12 bit performance without adjustments; (3)T/H front end and internal reference; (4)Four high impedance input channels; (5)DC and Dynamically specified; (6)Zero error typically<100μV; (7)standard microprocessor interface; (8)28-Pin DIP and wide SO.

Diagrams

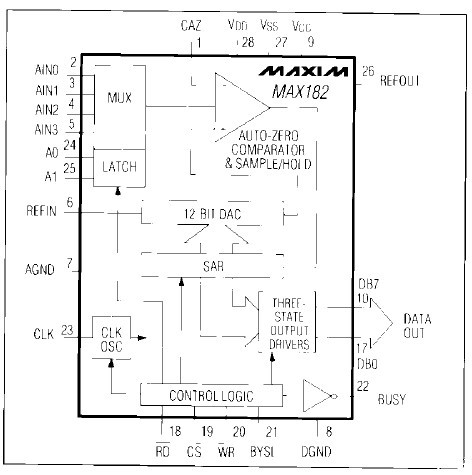

MAX182ACPI diagram
