Product Summary

The LM348N is a high-performance  Linear IC.

Parametrics

LM348N Parametrics:

Packaging   Tube
Amplifier Type General Purpose
Number of Circuits 4
Output Type -
Slew Rate 0.5 V/μs
Gain Bandwidth Product 1MHz
-3db Bandwidth -
Current - Input Bias 30nA
Voltage - Input Offset 1mV
Current - Supply 2.4mA
Current - Output / Channel 25mA
Voltage - Supply, Single/Dual (±) 8 V ~ 36 V, ±4 V ~ 18 V
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole

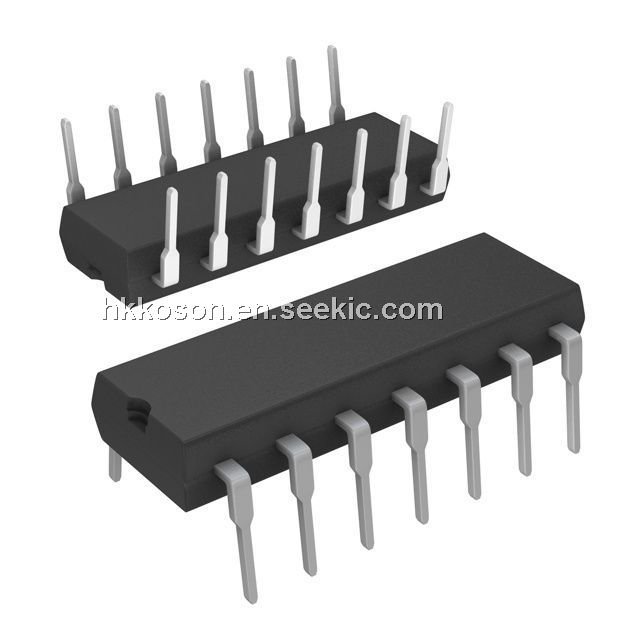

Package / Case 14-DIP (0.300", 7.62mm)
Supplier Device Package 14-PDIP
Dynamic Catalog General Purpose
Other Names 296-12849-5

Features

LM348N Features:

  •  μA741 Operating Characteristics
  •  Low Supply-Current Drain . . . 0.6 mA Typ(per amplifier)
  •  Low Input Offset Voltage
  •  Low Input Offset Current
  •  Class AB Output Stage
  •  Input/Output Overload Protection

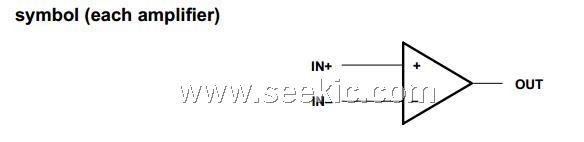

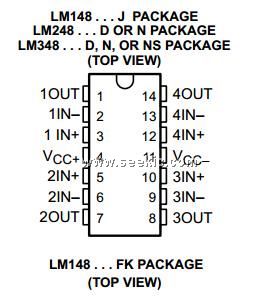

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM348N
LM348N
Texas Instruments
Operational Amplifiers - Op Amps Quad GP Op Amp
Data Sheet
0-1: $0.31
1-25: $0.27
25-100: $0.21
100-250: $0.16
LM348N/NOPB
LM348N/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1: $0.64
1-25: $0.51
25-100: $0.44
100-250: $0.39
LM348N/PB
LM348N/PB
National Semiconductor (TI)
Board Mount Temperature Sensors QUAD 741 OP AMP
Data Sheet
0-1000: $0.27
1000-2500: $0.25
2500-5000: $0.24
5000-10000: $0.22
LM348NE4
LM348NE4
Texas Instruments
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp
Data Sheet
0-1: $0.43
1-25: $0.30
25-100: $0.26
100-250: $0.22
LM348NSR
LM348NSR
Texas Instruments
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp
Data Sheet
0-1: $0.26
1-25: $0.21
25-100: $0.18
100-250: $0.16
LM348NSRE4
LM348NSRE4
Texas Instruments
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp
Data Sheet
0-1: $0.26
1-25: $0.21
25-100: $0.18
100-250: $0.16
LM348NSRG4
LM348NSRG4
Texas Instruments
Operational Amplifiers - Op Amps Quad Gen-Purp Op Amp
Data Sheet
0-1: $0.37
1-25: $0.25
25-100: $0.22
100-250: $0.19
