Product Summary

The LMV358AM8X is a high-performance General Purpose, Low Voltage, Rail-to-Rail Output Amplifiers.

Parametrics

LMV358AM8X Parametrics:

Packaging Tape & Reel (TR)
Amplifier Type Voltage Feedback
Number of Circuits 2
Output Type Rail-to-Rail
Slew Rate 1.5 V/μs
Gain Bandwidth Product 1.4MHz
-3db Bandwidth -
Current - Input Bias 1nA
Voltage - Input Offset 1mV
Current - Supply 100μA
Current - Output / Channel 34mA
Voltage - Supply, Single/Dual (±) 2.7 V ~ 5.5 V, ±1.35 V ~ 2.75 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Dynamic Catalog Voltage Feedback
Other Names LMV358AM8X-ND
LMV358AM8XTR





Features

LMV358AM8X Features:

? 80μA supply current per channel
? 1.2MHz gain bandwidth product
? Output voltage range: 0.01V to 2.69V
? Input voltage range: -0.25V to +1.5V
? 1.5V/μs slew rate
? Fully specified at +2.7V and +5V supplies
? Operating temperature range: -40°C to +125°C

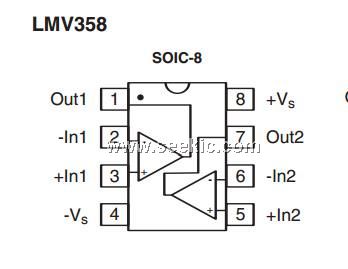

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

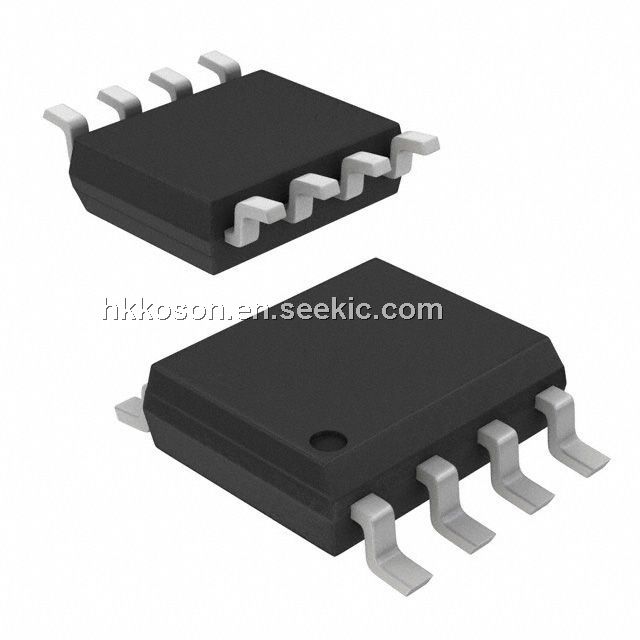

LMV358AM8X
LMV358AM8X

Fairchild Semiconductor

Operational Amplifiers - Op Amps Low Cost RRO amp General Purpose Dual

Data Sheet

0-1: $0.35
1-25: $0.28
25-100: $0.20
100-250: $0.18
