Product Summary

The MAX3232EUE transceiver has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from

a 3.0V to 5.5V supply with a dual charge pump.

Parametrics

MAX3232EUE Parametrics:

Packaging Tube
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 2/2
Duplex Full
Receiver Hysteresis 300mV
Data Rate 120Kbps
Voltage - Supply 3 V ~ 5.5 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount

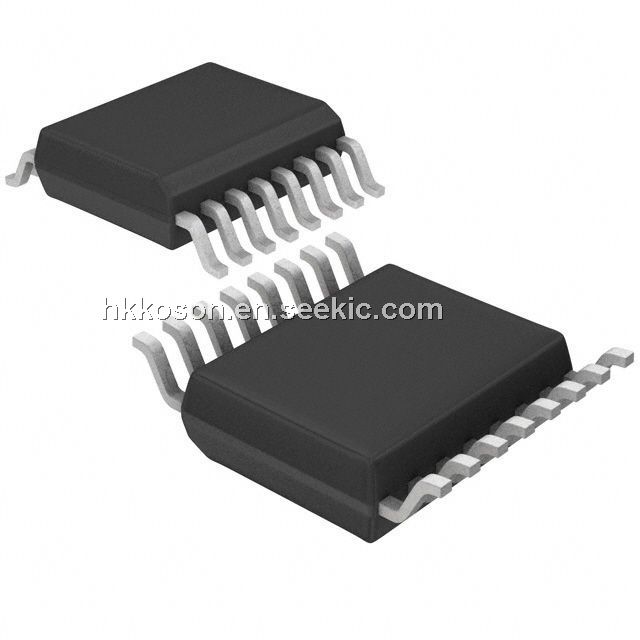

Package / Case 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-TSSOP
Dynamic Catalog RS-232 Transceivers

Features

MAX3232EUE Features:

For Integrated ESD Protection:±15kV ESD-Protected, Down to 10nA,3.0V to 5.5V, Up to 1Mbps, True

RS-232 Transceivers

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX3232EUE
MAX3232EUE
Maxim Integrated Products
RS-232 Interface IC
Data Sheet
Negotiable
MAX3232EUE+T
MAX3232EUE+T
Maxim Integrated Products
RS-232 Interface IC 3-5.5V 1Mbps Transceiver
Data Sheet
0-1: $3.44
1-25: $2.31
25-50: $1.87
50-250: $1.83
MAX3232EUE-T
MAX3232EUE-T
Maxim Integrated Products
RS-232 Interface IC
Data Sheet
Negotiable
MAX3232EUE+
MAX3232EUE+
Maxim Integrated Products
RS-232 Interface IC 3-5.5V 1Mbps Transceiver
Data Sheet
0-1: $3.76
1-25: $2.52
25-50: $1.82
50-100: $1.80
