U211B

Phase Control Circuit, DIP-18, 14.6 V to 16.6 V, 7.5mA, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.97~1.29 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.97~1.29

PartNumber:: U211B

Brand:: TFK - TFK | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Winnie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-02

From Other Seller

Part Number:U211B
US $0.97 - 1.29
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

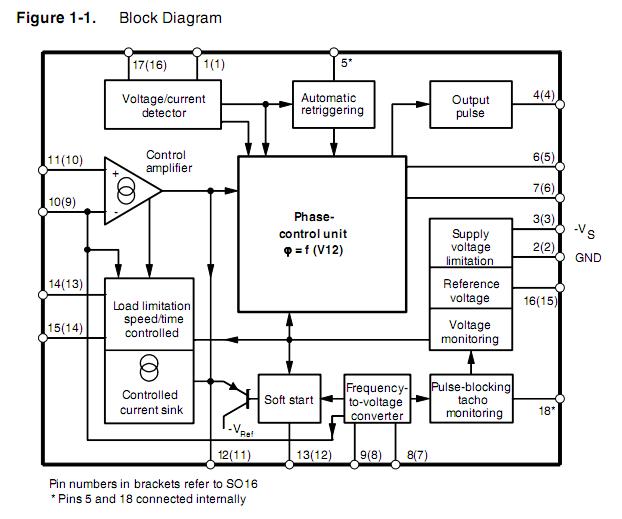

The U211B is designed as a phase control circuit in bipolar technology with an internal frequency-voltage converter. Furthermore, it has an internal control amplifier which means it can be used for speedregulated motor applications. The U211B has an integrated load limitation, tacho monitoring and soft-start functions, etc. to realize sophisticated motor control systems.

Parametrics

U211B absolute maximum ratings: (1)Current requirement, t≤10μs, Pin 3: 30 mA; (2)Input current, t≤10μs: 3mA; (3)Limiting current, neg. half wave, t≤10μs: 5mA; (4)Input voltage Pin 12: 0 to 7 V; (5)Input current Pin 12: 500μA; (6)Output current Pin 16: 7.5 mA; (7)Storage temperature range: –40 to +125 ℃; (8)Junction temperature: 125 ℃; (9)Ambient temperature range: –10 to +100 ℃.

Features

U211B features: (1)Internal frequency-to-voltage converter; (2)Externally-controlled integrated amplifier; (3)Overload limitation with a fold back characteristic; (4)Optimized soft-start function; (5)Tacho monitoring for shorted and open loop; (6)Automatic retriggering switchable; (7)Triggering pulse typ. 155 mA; (8)Voltage and current synchronization; (9)Internal supply-voltage monitoring; (10)Temperature reference source; (11)Current requirement≤ 3 mA.
