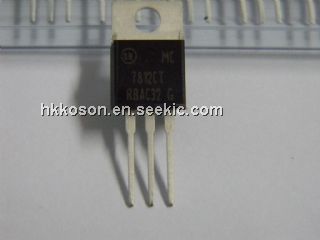

Product Summary
The MC7812CTG voltage regulators is monolithic integrated circuits designed as fixed?voltage regulators for a wide variety of
applications including local, on?card regulation. Such regulators employ internal current limiting, thermal shutdown, and
safe?area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed
primarily as a fixed voltage regulator, it can be used with external components to obtain adjustable voltages and currents.
Parametrics
MC7812CTG Parametrics:
Packaging
Tube
Regulator Topology
Positive Fixed
Voltage - Output
12V
Current - Output
1A
Voltage - Dropout (Typical)
2V @ 1A
Number of Regulators
1
Voltage - Input
Up to 35V
Current - Limit (Min)
-
Operating Temperature
0°C ~ 125°C
Mounting Type
Through Hole

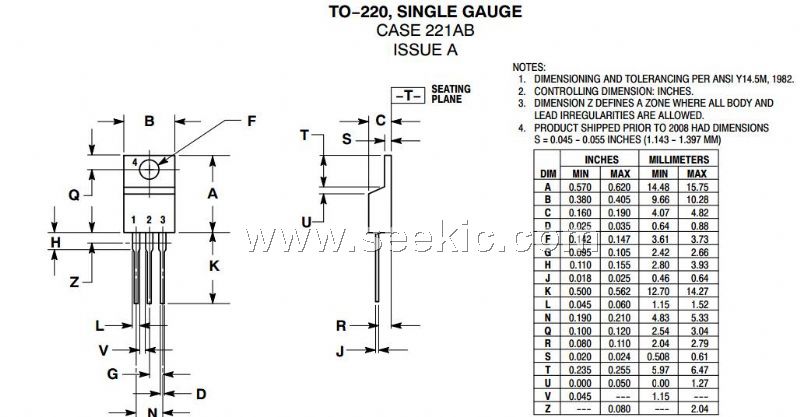

Package/Case
TO-220-3
Supplier Device Package
TO-220AB
Dynamic Catalog
> 10V
Other Names
MC7812CTGOS
Features
MC7812CTG Features:
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe?Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount Standard 3?Lead Transistor Packages
- The Applications Requiring Unique Site and Control Change Requirements; AEC?Q100 Qualified and PPAP Capable
- Pb?Free Devices
Diagrams
