Product Summary

The SS24 is a surface mount schottky barrier rectifier.

Parametrics

Absolute maximum ratings: (1)Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC method): 50.0 Amps; (2)Typical thermal resistance: 75 ℃/W; (3)Operating junction temperature range, TJ: -50 to +125℃; (4)Storage temperature range, TSTG: -65 to +150 ℃.

Features

Features: (1)Plastic Package has Underwriters Laboratory; (2)Flammability Classification 94V-0; (3)Metal silicon junction, majority carrier conduction; (4)For surface mount applications; (5)Guard ring for overvoltage protection; (6)Low power loss, high efficiency; (7)High current capability, Low forward voltage drop; (8)High surge capability; (9)For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications; (10)High temperature soldering guaranteed.

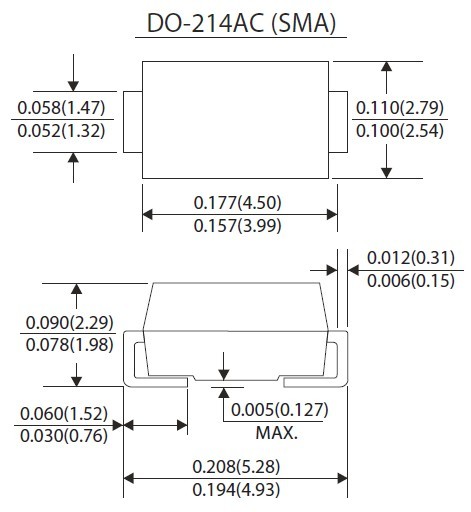

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SS24
SS24
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) 2a/40V Schottky
Data Sheet
0-1: $0.23
1-25: $0.19
25-100: $0.16
100-250: $0.13
SS24/1
SS24/1

DIODE SCHOTTKY 2A 40V SMB
Data Sheet
0-2000: $0.11
SS24/1T
SS24/1T
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM
Data Sheet
Negotiable
SS24/2BT
SS24/2BT
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM
Data Sheet
Negotiable
SS24/2CT
SS24/2CT
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM
Data Sheet
Negotiable
SS24/2T
SS24/2T
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 2.0 Amp 40 Volt
Data Sheet
Negotiable
SS24/51T
SS24/51T
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM
Data Sheet
Negotiable
SS24/55T
SS24/55T
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Volt 2.0 Amp 75 Amp IFSM
Data Sheet
Negotiable
