Product Summary

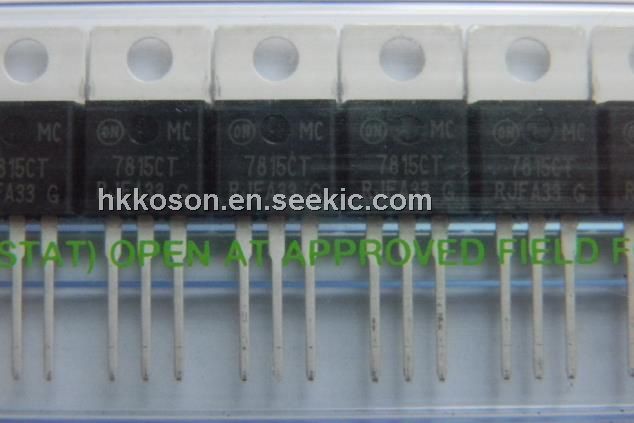

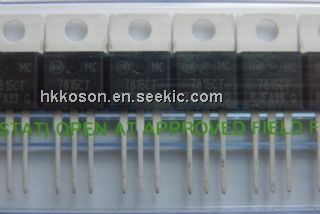

The MC7815CT is a high-performance 1.0 A Positive Voltage Regulators.
Parametrics
MC7815CT Parametrics:
Packaging
Tube
Regulator Topology
Positive Fixed
Voltage - Output
15V
Current - Output
1A
Voltage - Dropout (Typical)
2V @ 1A
Number of Regulators
1
Voltage - Input
Up to 35V
Current - Limit (Min)
-
Operating Temperature
0°C ~ 125°C
Mounting Type
Through Hole
Package / Case
TO-220-3
Supplier Device Package
TO-220AB
Other Names
MC7815CTOS
Features
MC7815CT Features:
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe?Area Compensation
- Pb?Free Devices
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC7815CT |
Fairchild Semiconductor |
Linear Regulators - Standard 1A Pos Volt Reg |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC7815CT_Q |
Fairchild Semiconductor |
Linear Regulators - Standard 1A Positive Voltage Regulator |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC7815CTG |
ON Semiconductor |
Linear Regulators - Standard 15V 1A Postive |
Data Sheet |
|
|
||||||||||||
|
MC7815CTBU |
Fairchild Semiconductor |
Linear Regulators - Standard Positive Voltage Reg 3Terminal 1a |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MC7815CT-BP |
|
IC REG LDO 15V 1.5A TO220 |
Data Sheet |
Negotiable |
|
||||||||||||
