Product Summary

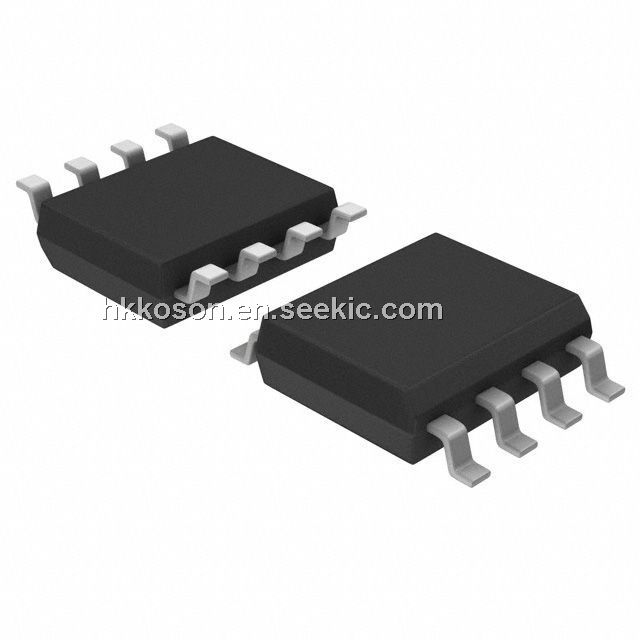

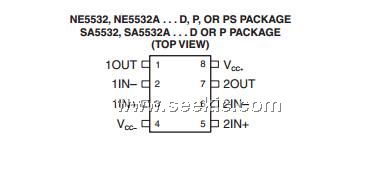

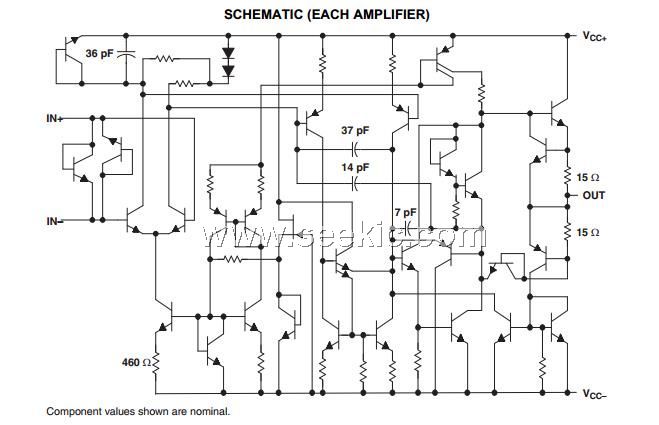

The NE5532DR is a high-performance DUAL LOW-NOISE OPERATIONAL AMPLIFIER.
Parametrics
NE5532DR Parametrics:
Packaging | Tape & Reel (TR) |
---|---|
Amplifier Type | General Purpose |
Number of Circuits | 2 |
Output Type | - |
Slew Rate | 9 V/μs |
Gain Bandwidth Product | 10MHz |
-3db Bandwidth | - |
Current - Input Bias | 200nA |
Voltage - Input Offset | 500μV |
Current - Supply | 8mA |
Current - Output / Channel | 38mA |
Voltage - Supply, Single/Dual (±) | ±5 V ~ 15 V |
Operating Temperature | 0°C ~ 70°C |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Dynamic Catalog | General Purpose |
Other Names | 296-13622-2 |
Features
NE5532DR Features:
? Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz
? Unity-Gain Bandwidth: 10 MHz Typ
? Common-Mode Rejection Ratio: 100 dB Typ
? High DC Voltage Gain: 100 V/mV Typ
? Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω
? High Slew Rate: 9 V/μs Typ
